5961-01-008-7652

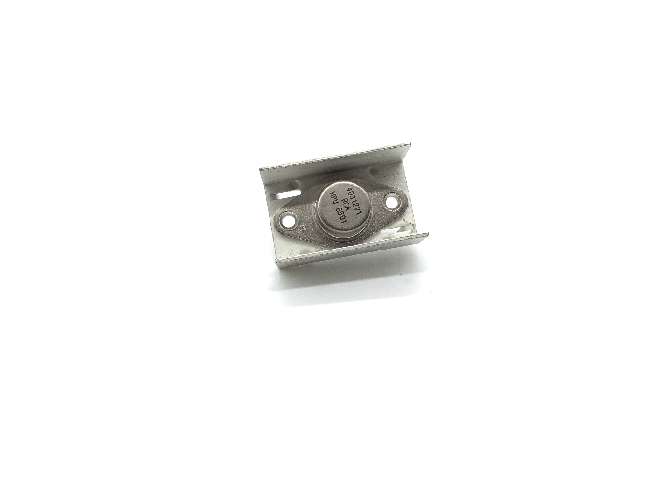

Transistor
- NSN
- 5961-01-008-7652
- NIIN
- 01-008-7652
- Description
- Transistor
- DEMIL
- DEMIL/MLI
- INC
- 20588
- Assigment Date
- Fri, Aug 29, 1975
- Schedule B Code
- 8541500080
- Current Rating Per Characteristic
- 4.00 amperes maximum collector current, dc
- Electrode Internally-Electrically Connected To Case
- collector
- Features Provided
- hermetically sealed case
- Internal Configuration
- junction contact
- Maximum Operating Temp Per Measurement Point
- 200.0 celsius junction
- Mounting Facility Quantity
- 2
- Mounting Method
- unthreaded hole(s)
- Overall Height
- 0.340 inches maximum
- Overall Length
- 0.340 inches maximum
- Overall Width
- 0.620 inches maximum
- Power Rating Per Characteristic
- 29.0 watts maximum total power dissipation
- Semiconductor Material
- silicon
- Special Features
- junction pattern arrangement: npn
- Terminal Type And Quantity
- 2 pin
- Voltage Rating In Volts Per Characteristic
- 60.0 nominal collector to emitter reverse voltage
Material and Special Handling
Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.
-
HMICHAZMAT (Hazardous Material)
-
NIndicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
-
PMICPrecious Metals
-
UPrecious metal content is unknown
-
CRITLCriticality Code
-
XThe item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Manufacturers and Part Numbers
| Part Number | Brand |
|---|---|
| 40312V1 | Harris Corp Semiconductor Sector |
Major Organizational Entities (MOE)
| Entity | MOE Code | MOE Rule | PICA | DSOR |
|---|---|---|---|---|
| Department of the Air Force | DF | FXGX | GX | |
| Federal Aviation Administration | GE | BGX1 | GX | |
| U.s. Coast Guard | GP | C911 | GX | |
| Department of the Navy | DN | N9BN | GX | |
| Turkey | ZW | ZW01 | ZW | |
| Canada | ZC | ZC01 | ZC |
Packaging and Dimensions
| PICA SICA | Package Size | Package Weight | Part Weight | Part Dimensions |
|---|---|---|---|---|
| P | 0000 X 0000 X 0000 | 0000.1 | . | |
| PICA SICA | Container | OPI | SPI No. | SPI Rev. |
| P | ZZ | M | ||
| PICA SICA | SPC Mkg. | LVL A | LVL B | LVL C |
| P | ZZ | Q | Q | U |
| PICA SICA | CUSH | MOP | CATEG. | PRESS MAT |
| P | ZZ | ZZ | 69F0 | ZZ |
| PICA SICA | WRAP MAT | ICQ | THK | TOS |
| P | ZZ | AAA | C |
