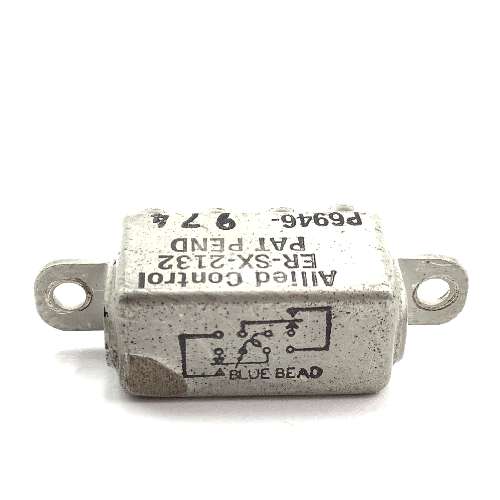

5945-00-056-6272 Properties

  • NSN:
    5945-00-056-6272
  • Description:
    Electromagnetic Relay
  • Shelf Life:
    N/A
  • DEMIL:
    NO
  • UOM:
    1 EA
  • Overall Length:
    1.030 inches
  • Center To Center Distance Between Mounting Facilities Parallel To Length:
    1.078 inches single mounting facility
  • Overall Height:
    0.410 inches
  • Overall Width:
    0.590 inches
  • Environmental Protection:
    Hermetic
  • Unthreaded Mounting Hole Diameter:
    0.096 inches single mounting facility
  • Fragility Factor:
    Moderately rugged
  • Winding Quantity:
    1
  • Purpose For Which Designed:
    General
  • Coil Quantity:
    1
  • Winding Dc Resistance Rating:
    765.0 ohms single winding
  • Duty Type:
    Continuous
  • Arc Quenching Method:
    Air
  • Mounting Facility Type And Quantity:
    2 unthreaded hole single mounting facility
  • Storage Type:
    General purpose warehouse
  • Features Provided:
    Polarized
  • Cubic Measure:
    0.249 cubic inches
  • Mounting Facility Pattern:
    In-line single mounting facility
  • Nonpile-up Main Contact Arrangement:
    2 pole, double throw, two positions momentary
  • Operating Voltage Rating And Type At Specificationified Temp:
    26.5 volts dc 25 degrees celsius single winding
  • Main Contact Load Current Rating At Maximum Rated Voltage:
    500.0 milliamperes ac resistive load and 500.0 milliamperes dc resistive load
  • Main Contact Maximum Voltage Rating In Volts:
    115.0 ac and 28.0 dc
  • Terminal Type And Quantity:
    8 pin all functions
