5940-00-950-7784

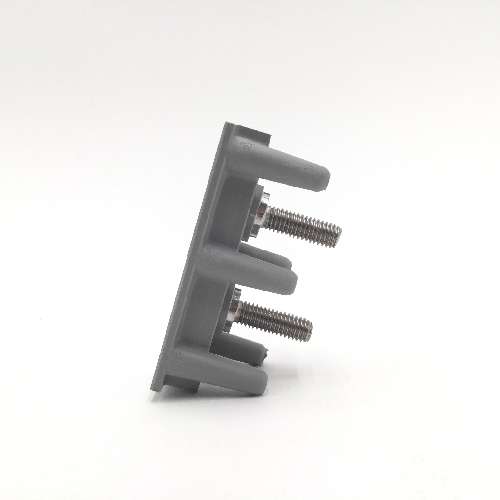

Description: Terminal Board

5940-00-950-7784

Price Quote

Qty:
Email Address:
Phone Number:
Company:
Privacy    Terms

Quality Assurance

We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.

  • Certificate of Conformity
  • QC Inspection prior to shipping
  • On time delivery
  • International Shipping Available
  • Friendly service to back every order
MILSPEC: Terminal Strips Terminals Lugs

 Export Restrictions

Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)

5940-00-950-7784 Properties

  • NSN:
    5940-00-950-7784
  • Description:
    Terminal Board
  • Shelf Life:
    N/A
  • DEMIL:
    NO
  • UOM:
    1 EA
  • Mounting Hole Diameter:
    0.120 inches
  • Body Style:
    Barrier type
  • Terminal Row Quantity:
    1
  • Center To Center Distance Between Terminals:
    0.750 inches
  • Board Construction:
    Hollow construction without insulated strip
  • Center To Center Distance Between Mounting Facilities Parallel To Length:
    0.750 inches
  • Distance From Bottom Edge Of Terminal Board To Center Of Mounting Hole:
    0.469 inches
  • Distance From Left Edge Of Terminal Board To Center Of First Mounting Facility:
    0.218 inches
  • Boardlength:
    12.454 inches
  • Boardwidth:
    0.938 inches
  • Boardheight:
    1.079 inches
  • Board Height Excluding Terminals:
    0.789 inches
  • Base Thickness:
    0.328 inches
  • End Application:
    Mrap rg-33
  • Mounting Facility Type And Quantity:
    16 unthreaded hole
  • Nonfeedthru Terminal Type:
    598 single
  • Nonfeedthru Terminal Quantity:
    16 single
  • Terminal Pattern Arrangement:
    Single row
  • Terminal Design:
    Nonfeedthru
  • Special Features:
    16 max non-feed-through terminals, cut to desiredsize at point of installation.
  • Material:
    Plastic board
