5935-00-032-9564

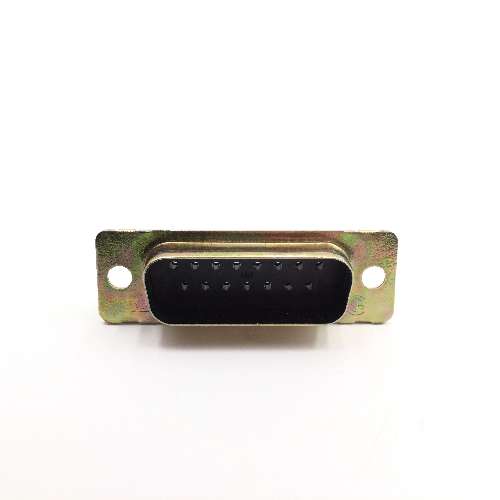

Description: Electr Receptacle Connector Body

5935-00-032-9564

Price Quote

Qty:
Email Address:
Phone Number:
Company:
Privacy    Terms

Quality Assurance

We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.

  • Certificate of Conformity
  • QC Inspection prior to shipping
  • On time delivery
  • International Shipping Available
  • Friendly service to back every order
MILSPEC: Electrical Connectors

 Export Restrictions

Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)

5935-00-032-9564 Properties

  • NSN:
    5935-00-032-9564
  • Description:
    Electr Receptacle Connector Body
  • Shelf Life:
    N/A
  • DEMIL:
    NO
  • UOM:
    EA
  • Body Style:
    Straight shape, rectangular
  • Overall Length:
    Between 1.531 inches and 1.551 inches
  • Overall Height:
    0.706 inches
  • Overall Width:
    Between 0.484 inches and 0.504 inches
  • Environmental Protection:
    Vibration resistant
  • Unthreaded Mounting Hole Diameter:
    Between 0.110 inches and 0.130 inches
  • Distance Between Mounting Facility Centers:
    Between 1.302 inches and 1.322 inches
  • Mating End Quantity:
    1
  • Contact Position Arrangement Style:
    15 single mating end
  • Polarization Method:
    Mating end
  • Shell Type:
    Solid
  • Connector Locking Method:
    Friction
  • Operating Tempurature Rating:
    Between -55.0 degrees celsius and 105.0 degrees celsius
  • Insert Material:
    Plastic polyamide and glass fiber or plastic phenolic and glass fiber or plastic single mating end
  • Shell Material:
    Steel
  • Shell Surface Treatment:
    Chromate and zinc
  • Shell Surface Treatment Specification:
    Astm-b633, type ii, class sc1 assn standard all treatment responses
  • Color:
    Black
  • Specification Data:
    96214-539409 manufacturers specification control
Manufacturers and Part Numbers
Part Number
Brand
SD15M00000
Positronic Industries
154106097
Eaton Corporation
J20-000-4-002
Harris Corporation
J20-0004-002
Harris Corporation
CD15M000
Positronic Industries
205206-1
Tyco Electronics Corporation
539409-3
Charles V Clark Co.
26-148F01M00R00
Concurrent Computer Corporation
PAC15P
Phoenix Company Of Chicago
910-0015AA
Micom Systems
1-801115-1
Icc
SK61780 FIND 7
Martin Marietta Technologies
Major Organizational Entities (MOE)
Entity
MOE Code
MOE Rule
PICA
DSOR
User:
NATIONAL AERONAUTICS AND SPACE ADMINISTRATION National Aeronautics and Space Administration
MOE_CD:
T1
MOE_RL:
G800
PICA:
80
DSOR:
User:
NATIONAL AERONAUTICS AND SPACE ADMINISTRATION National Aeronautics and Space Administration
MOE_CD:
T1
MOE_RL:
G280
PICA:
28
DSOR:
User:
NATIONAL AERONAUTICS AND SPACE ADMINISTRATION National Aeronautics and Space Administration
MOE_CD:
T1
MOE_RL:
G860
PICA:
86
DSOR:
User:
NATIONAL AERONAUTICS AND SPACE ADMINISTRATION National Aeronautics and Space Administration
MOE_CD:
T1
MOE_RL:
G880
PICA:
88
DSOR:
User:
BRAZIL Brazil
MOE_CD:
YA
MOE_RL:
YA01
PICA:
YA
DSOR:
User:
SPAIN Spain
MOE_CD:
YB
MOE_RL:
YB01
PICA:
YB
DSOR:
User:
AUSTRALIA Australia
MOE_CD:
ZA
MOE_RL:
ZA01
PICA:
ZA
DSOR:
User:
CANADA Canada
MOE_CD:
ZC
MOE_RL:
ZC01
PICA:
ZC
DSOR:
User:
GERMANY Germany
MOE_CD:
ZG
MOE_RL:
ZG01
PICA:
ZG
DSOR:
User:
REPUBLIC OF KOREA Republic of Korea
MOE_CD:
ZH
MOE_RL:
ZH01
PICA:
ZH
DSOR:
User:
UNITED KINGDOM United Kingdom
MOE_CD:
ZK
MOE_RL:
ZK01
PICA:
ZK
DSOR:
User:
ITALY Italy
MOE_CD:
ZR
MOE_RL:
ZR01
PICA:
ZR
DSOR:
User:
NORWAY Norway
MOE_CD:
ZT
MOE_RL:
ZT01
PICA:
ZT
DSOR:
User:
TURKEY Turkey
MOE_CD:
ZW
MOE_RL:
ZW01
PICA:
ZW
DSOR:
Part Identification
INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
61925
FIIG:
A039B0
Concept No.:
App. Key:
E
Cond. Code:
1
Status:
A
Material and Special Handling
Hazardous material, precious metals, criticality, enviroment, and electrostatic discharge indicators
HMIC
PMIC
ESD/EMI
ENAC
MMAC
CRITL
HMIC:
P
PMIC:
A
ESD:
ESD:
MMAC:
---
CRITL:
X
Hazmat (HMIC): P
Indicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.
Precious Metals (PMIC): A
Item does not contain precious metal.
Criticality (CRITL): X
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Packaging and Dimensions
Package Size
Package Weight
Part Weight
Part Dimensions (approx.)
Pack Size:
1.6 X 0.5 X 0.7
Pack Weight:
0.2000lbs
Item Weight:
--
Item Dim:
--
Container
OPI
SPI No.
SPI Rev.
Container:
XX
OPI:
O
SPI No.:
SPI Rev.:
SPC Mkg.
LVL A
LVL B
LVL C
SPC Mkg.:
00
LVL A:
E
LVL B:
Q
LVL C:
U
CUSH
MOP
CATEG.
PRESS MAT
CUSH:
00
MOP:
41
CATEG.:
69Z0
PRESS MAT:
00
WRAP MAT
ICQ
THK
TOS
UCL
WRAP MAT:
EA
ICQ:
AAA
THK:
0
TOS:
UCL:
Packaging Code Definitions
LVL A Code (LVL_A):E
Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.
LVL B Code (LVL_B): Q
Packing shall be accomplished in accordance with table c.Ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
Procedure Indicator Code (OPI): O
Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.
Special Markings Code (SPC MKG): 00
No special marking.
Method of Preservation (MOP): 41
Watervaporproof bag, sealed.
Cushion Material (CUSH): 00
No requirement.
Preservation Material (PRESS MAT): 00
No requirement.
