5930-01-310-6084

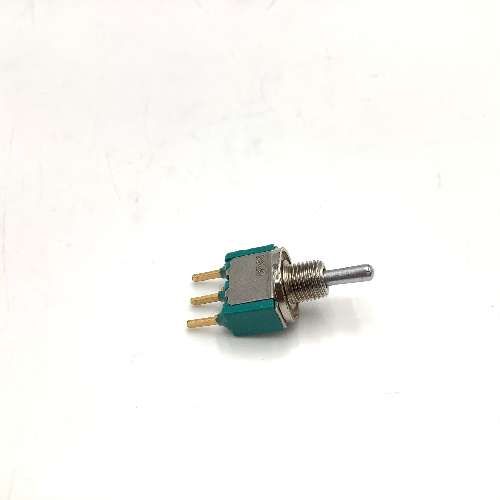

Description: Toggle Switch

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
5930-01-310-6084 Properties
-
NSN:5930-01-310-6084
-
Description:Toggle Switch
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Thread Class:2a
-
Body Style:Bushing mount
-
Hazardous Locations/environmental Protection:Explosion proof and dustproof and moisture resistant and salt spray resistant
-
Overall Length:Between 0.495 inches and 0.505 inches
-
Overall Height:1.212 inches
-
Overall Width:0.468 inches
-
Bushing Length:0.220 inches
-
Body Length:Between 0.495 inches and 0.505 inches
-
Body Width:0.260 inches
-
Case Material:Metal
-
Actuator Style:Round
-
Actuator Diameter:Between 0.114 inches and 0.116 inches
-
Actuator Height:0.340 inches
-
Actuator Position-action Relationship:Up position momentary and down position momentary and center position maintained
-
End Application:Weapon system-aircraft, ac-130h, mc-130h, ec-130e, hc-130)
-
Mounting Surface To Terminal End Distance:0.652 inches
-
Inclosure Type:Fully enclosed
-
Mounting Method:Threaded bushing
-
Thready Qty Per Inch (tpi):40
-
Thread Size:0.250 inches
-
Nonpile-up Contact Arrangement:1 pole, double throw, two positions momentary single switch unit
-
Criticality Code Justification:Feat
-
Special Features:Weapon system essential
-
Precious Material And Location:Contact and terminal surface option gold and contacts and terminals silver
-
Thread Series Designator:Uns
-
Terminal Type And Quantity:3 printed circuit
