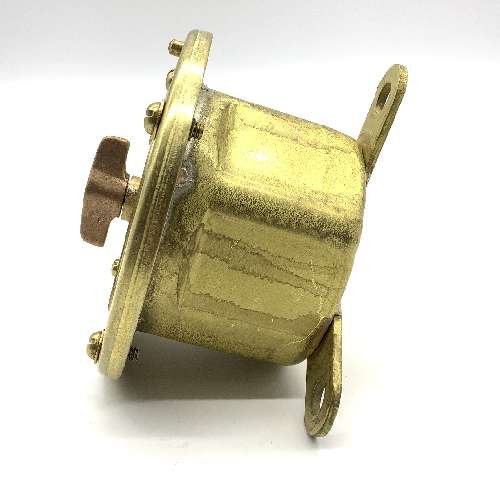

5930-01-263-5024

Description: Rotary Switch

5930-01-263-5024

Price Quote

Qty:
Email Address:
Phone Number:
Company:
Privacy    Terms

Quality Assurance

We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.

  • Certificate of Conformity
  • QC Inspection prior to shipping
  • On time delivery
  • International Shipping Available
  • Friendly service to back every order
MILSPEC: Switches

 Export Restrictions

Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)

5930-01-263-5024 Properties

  • NSN:
    5930-01-263-5024
  • Description:
    Rotary Switch
  • Shelf Life:
    N/A
  • DEMIL:
    NO
  • UOM:
    1 EA
  • Hazardous Locations/environmental Protection:
    Watertight
  • Overall Length:
    3.410 inches
  • Overall Height:
    4.620 inches
  • Overall Width:
    4.620 inches
  • Unthreaded Mounting Hole Diameter:
    0.375 inches single mounting facility
  • Individual Section Quantity:
    2
  • Switch Contact Basic Design:
    Nonpile-up nonsymmetrical
  • Mounting Facility Circle Radius:
    2.250 inches single mounting facility
  • Mounting Method:
    Bracket single mounting facility and unthreaded hole single mounting facility
  • Features Provided:
    Actuator knob and metallic inclosure
  • Contact Voltage Rating In Volts:
    125.0 ac at sea level
  • Mounting Facility Pattern:
    Three position circular single mounting facility
  • Switch Actuator Indexing Position Quantity:
    2 single actuator
  • Criticality Code Justification:
    Feat
  • Terminal Type:
    Tab w/screw
  • Switch Actuator Positioning Increment:
    90.0 degrees single actuator
  • Switch Actuator Stop Device Type:
    Fixed stop single actuator
  • Contact Load Current Rating:
    10.0 amperes resistive load ac at sea level
  • Special Features:
    Weapon system essential
  • Style Designator:
    Tap, circuit selector
  • Test Data Document:
    81349-mil-s-15743 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
  • Specification Data:
    81349-mil-s-15743/3 government specification
