- NSN 5930-01-006-9886

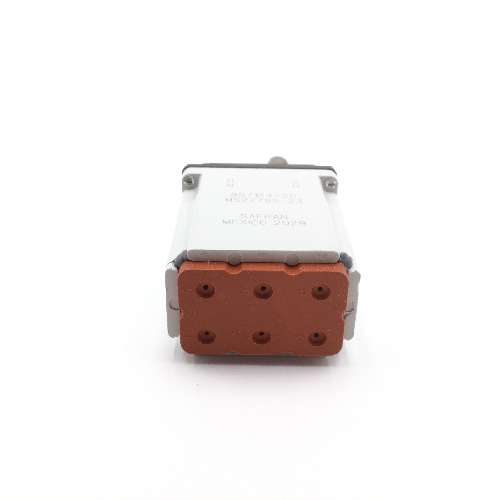

5930-01-006-9886
Description: Toggle Switch

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
5930-01-006-9886 Properties
-
NSN:5930-01-006-9886
-
Description:Toggle Switch
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Body Style:Bushing mount
-
Bushing Length:0.470 inches
-
Body Length:1.340 inches
-
Body Width:0.910 inches
-
Body Height:1.706 inches
-
Actuator Style:Round
-
Actuator Diameter:0.240 inches
-
Actuator Height:0.690 inches
-
Actuator Position-action Relationship:Up position maintained and down position maintained
-
Actuator Position-locking Relationship:Up position no locking action and down position no locking action
-
Maximum Voltage Rating In Volts:115.0 ac and 28.0 dc
-
Inclosure Type:Fully enclosed
-
Features Provided:Actuator seal
-
Thready Qty Per Inch (tpi):32
-
Thread Size:0.469 inches
-
Nonpile-up Contact Arrangement:2 pole, double throw, double break/double make, permanent jumper, both positions maintained single switch unit
-
Contact Load Current Rating At Maximum Rated Voltage:7.500 amperes resistive dc and 7.500 amperes lamp dc and 7.500 amperes resistive ac and 7.500 amperes inductive ac and 4.000 amperes lamp ac
-
Special Features:Terminal end color coded red to indicate contact size
-
Test Data Document:81349-mil-s-3950 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
-
Thread Series Designator:Uns
-
Terminal Type And Quantity:6 socket, integrated wire termination
