5930-00-930-5016

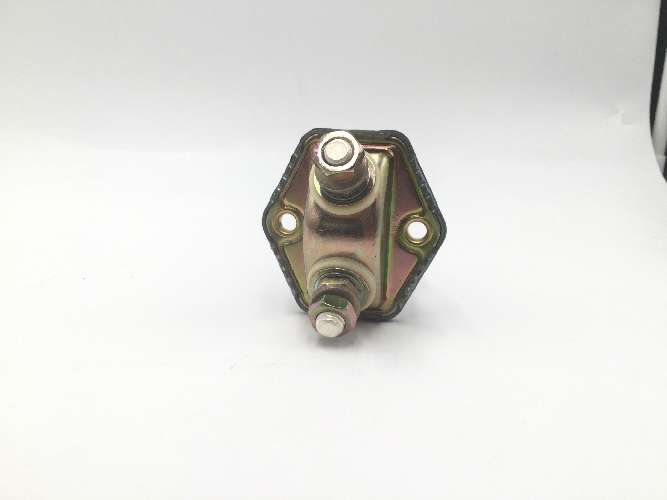

Description: Pull Switch
Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
5930-00-930-5016 Properties
-
NSN:5930-00-930-5016
-
Description:Pull Switch
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Body Style:Hole mount
-
Body Diameter:2.690 inches
-
Body Height:1.540 inches
-
Unthreaded Mounting Hole Diameter:Between 0.255 inches and 0.275 inches
-
Center To Center Distance Between Mounting Facilities Parallel To Diameter:1.765 inches
-
Actuator Length:2.500 inches
-
Actuator Style:Rectangular
-
Actuator Height:Between 1.900 inches and 2.350 inches
-
Actuator Width:1.250 inches
-
Actuator Inscription:Pull-turn single actuator
-
Maximum Voltage Rating In Volts:28.0 dc
-
Inclosure Type:Fully enclosed
-
Mounting Method:Unthreaded hole
-
Nonpile-up Contact Arrangement:1 pole, single throw, normally closed, double break, momentary action single switch unit
-
Contact Load Current Rating At Maximum Rated Voltage:300.000 amperes resistive dc and 150.000 amperes inductive dc
-
Precious Material And Location:Contacts silver
-
Test Data Document:81349-mil-s-13625 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
-
Terminal Type And Quantity:2 threaded stud
-
Specification Data:81349-mil-s-13625/2 government specification
