5930-00-296-9927

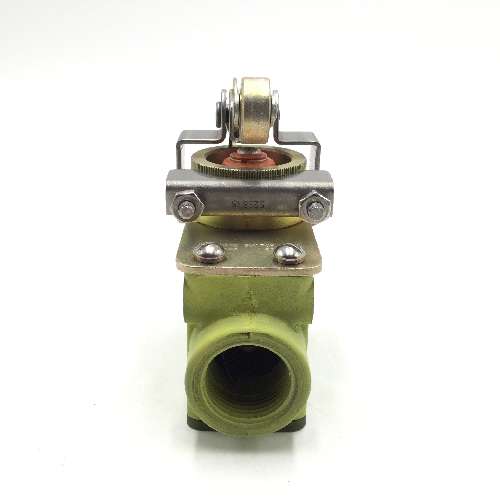

Description: Sensitive Switch

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
5930-00-296-9927 Properties
-
NSN:5930-00-296-9927
-
Description:Sensitive Switch
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Body Style:Hole mounted
-
Hazardous Locations/environmental Protection:Dustproof and fungus resistant
-
Center To Center Distance Between Mounting Facilities Parallel To Length:2.625 inches
-
Body Length:3.500 inches
-
Body Width:1.437 inches
-
Body Height:2.000 inches
-
Case Material:Metal
-
Unthreaded Mounting Hole Diameter:0.219 inches
-
Actuator Style:Round
-
Actuator Diameter:0.312 inches
-
Actuator Height:1.021 inches
-
Actuator Free Position Height:1.396 inches
-
Maximum Voltage Rating In Volts:125.0 ac and 125.0 dc
-
End Application:4kidd class ddg, virginia class cgn (41), supply class aoe, spruance class dd (963), nimitx class cvn, arleigh burke class ddg, cvn 68 class reactor fill auxiliary system, forrestal class cv, oliver perry class ffg, mk 37 gun fire control system
-
Inclosure Type:Fully enclosed
-
Mounting Method:Threaded hole
-
Thread Size:0.190 inches
-
Nonpile-up Contact Arrangement:1 pole, double throw, one position momentary single switch unit
-
Switch Release Force:10.0 ounces
-
Criticality Code Justification:Feat
-
Switch Actuating Force:Between 28.0 ounces and 54.0 ounces
-
Actuator Movement:Between 0.078 pretravel inches and 0.188 overtravel inches and 0.005 differential inches
-
Contact Load Current Rating At Maximum Rated Voltage:400.000 milliamperes resistive dc and 10.000 amperes resistive ac
-
Special Features:Weapon system essential
-
Thread Series Designator:Unf
-
Terminal Type And Quantity:3 screw
