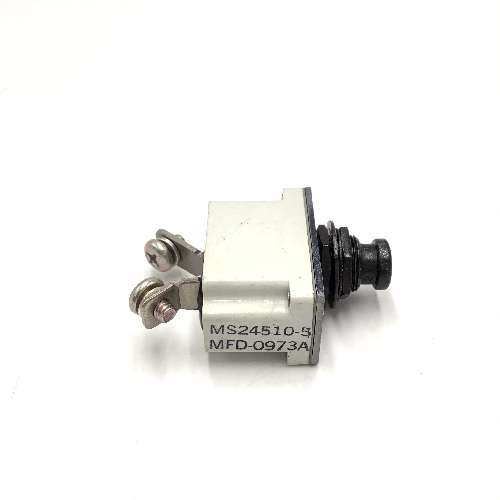

5925-00-837-7944 Properties

  • NSN:
    5925-00-837-7944
  • Description:
    Circuit Breaker
  • Shelf Life:
    N/A
  • DEMIL:
    NO
  • UOM:
    1 EA
  • Body Style:
    Single pole type
  • Bushing Length:
    0.344 inches
  • Body Length:
    1.375 inches
  • Body Width:
    0.750 inches
  • Case Material:
    Metal
  • Center To Center Distance Between Terminals Parallel To Length:
    0.906 inches
  • Mounting Surface To Terminal End Distance:
    1.312 inches
  • Pole Quantity:
    1
  • Mounting Facility Type And Quantity:
    1 threaded bushing
  • Thready Qty Per Inch (tpi):
    32
  • Operating Voltage Type And Rating Per Pole In Volts:
    115.0 ac single location and 28.0 dc single location
  • Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps:
    3500.0 ac single location and 6000.0 dc single location
  • Circuit Protection Type:
    Overcurrent single location
  • Trip Release Method:
    Thermal single location
  • Trip Release Characteristic:
    Time delay single location
  • Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent:
    138.0 single location
  • Reset Method:
    Manual
  • Main Contact Tripping Mechanism Type:
    Trip free
  • Manual Actuator Type And Quantity:
    1 push-pull
  • Actuator Function:
    Trip-reset
  • Actuator Position Designation:
    At pole one
  • Internal Trip Release Configuration:
    Series trip single location
  • Thread Size:
    0.469 inches
  • Trip Delay Time In Seconds Per Rated Continuous Current:
    30.000 at 200 pct single location and 80.000 at 200 pct single location
  • Inclosure Protection Type For Which Designed:
    Moisture resistant and explosion resistant
  • Trip Release Ambient Tempurature Rating:
    25.0 degrees celsius single location
  • Frequency In Hertz:
    400.0 single location
  • Thread Series Designator:
    Uns
  • Terminal Type And Quantity:
    2 screw
