5920-00-978-1162

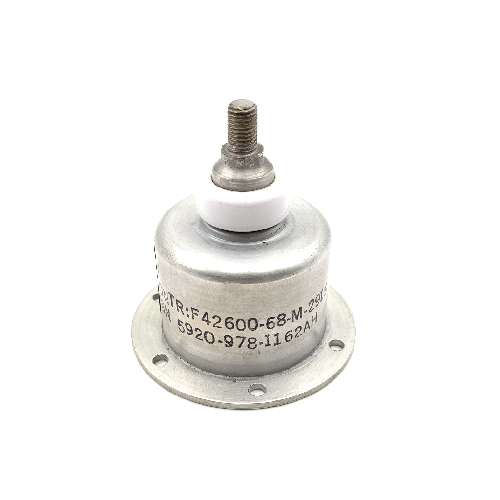

Lightning Arrester

NSN: 5920-00-978-1162
FSG: 59 - Electrical and Electronic Equipment Components
FSC: 5920 -Fuses, Arrestors, Absorbers and Protectors
NIIN: 00-978-1162
Description: Lightning Arrester
DEMIL: DEMIL/MLI
INC: 00382
Assigment Date: Fri, Oct 7, 1966
Schedule B Code: 8535400000
Arrester Type: air gap
Breakdown Voltage: 1.500 kilovolts minimum and 4.000 kilovolts maximum
Line To Ground Voltage: 3.000 kilovolts minimum and 4.000 kilovolts maximum
Mounting Configuration: six equally spaced holes 0.177 in. dia on a 2.375 in. bolt circle along a circular flange 0.094 in. thk
Mounting Method: hole
Overall Diameter: 2.750 inches nominal
Overall Length: 2.812 inches nominal
Terminal Quantity: 1
Terminal Type: threaded stud
Usage Design: outdoor

Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.

HMIC HAZMAT (Hazardous Material): P

Indicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.
PMIC Precious Metals: U

Precious metal content is unknown
CRITL Criticality Code: X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Part Number	Brand
013-1859-000	Rockwell Collins, Inc. Dba Collins Aerospace Government Systems Div Collins Aerospace - Government Systems
1903-01	Joslyn Products
AD969-CG	Joslyn Corp
AD969CG	Joslyn Products

Entity	MOE Code	MOE Rule	PICA	DSOR
Department of the Navy	DN	N9BN	GX
Department of the Air Force	DF	FUGX	GX

PICA SICA	Package Size	Package Weight	Part Weight	Part Dimensions
P	0000 X 0000 X 0000	0000.2	.
PICA SICA	Container	OPI	SPI No.	SPI Rev.
P	EC	O
PICA SICA	SPC Mkg.	LVL A	LVL B	LVL C
P	00	Q	Q
PICA SICA	CUSH	MOP	CATEG.	PRESS MAT
P	ZZ	10	69F0	00
PICA SICA	WRAP MAT	ICQ	THK	TOS
P	00	AAA	C	B

Packaging Code Definitions

LVL_A: Q: Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with applicable specification for shipping container.
LVL_B: Q: Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
OPI: O: Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. However, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. Equal or better protection shall be given the item and there shall be no increase in the package cost.
SPC_MKG: 00: No special marking.
MOP: 10: Physical protection.
CUSH_DUN: ZZ: Special requirements. See specific instructions or drawings provided.
PRES_MAT: 00: No requirement.
