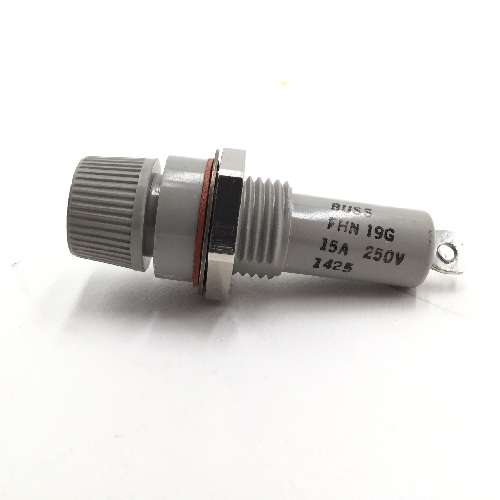

5920-00-581-7957 Properties

  • NSN:
    5920-00-581-7957
  • Description:
    Extractor Post Fuseholder
  • Shelf Life:
    N/A
  • DEMIL:
    NO
  • UOM:
    5 EA
  • Body Material:
    Plastic, diallyl phthalate, mil-m-14, type sdg
  • Body Style:
    Bushing mounted type
  • Terminal Surface Treatment:
    Solder dip and tin plated
  • Overall Length:
    2.450 inches
  • Bushing Diameter:
    0.625 inches
  • Mounting Hole Quantity:
    1
  • Overall Diameter:
    Between 0.790 inches and 0.830 inches
  • Environmental Protection:
    Dripproof
  • Mounting Hole Style:
    Bushing mounting
  • Contact Material:
    Any acceptable
  • Contact Surface Treatment:
    Silver plated, qq-s-365
  • Fuse Accommodation Quantity:
    1
  • Accommodated Fuse Length:
    1.250 inches
  • Accommodated Ferrule Diameter:
    0.281 inches
  • Length From Front Protrusion To Mounting Surface:
    Between 0.640 inches and 0.680 inches
  • Bushing Thread Length:
    Between 0.480 inches and 0.520 inches
  • Cap Diameter:
    Between 0.670 inches and 0.710 inches
  • Bushing Hole Diameter:
    Between 0.625 inches and 0.635 inches
  • Flatted Side Bushing Hole Length:
    Between 0.570 inches and 0.575 inches
  • Current Carrying Rating In Amps:
    15.0
  • Fuse Terminal Type Accommodated:
    Ferrule
  • Voltage In Volts:
    250.0
  • Test Data Document:
    81349-mil-f-19207/10 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
  • Terminal Type And Quantity:
    2 tab, solder lug
