NSN 5920-00-107-0824

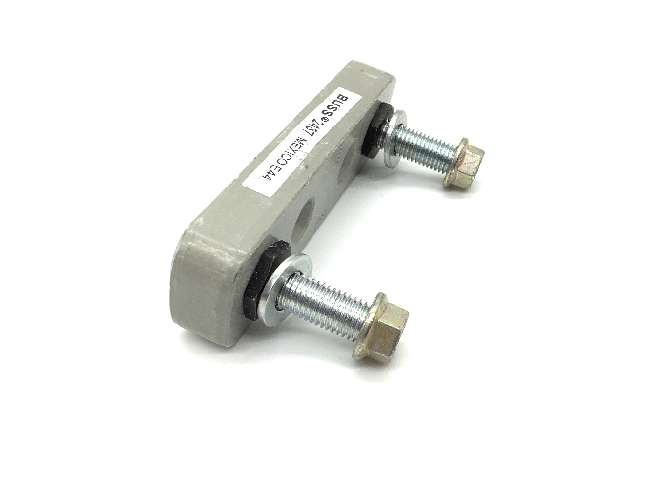

Block Fuseholder
- NSN
- 5920-00-107-0824
- NIIN
- 00-107-0824
- Description
- Block Fuseholder
- DEMIL
- DEMIL/MLI
- INC
- 28908
- Assigment Date
- Fri, Aug 2, 1968
- Schedule B Code
- 8548900100
- Accommodated Fuse Length
- 3.188 inches nominal
- Accommodated Fuse Thickness
- 0.094 inches maximum
- Accommodated Fuse Width
- 0.750 inches nominal
- Base Thickness
- 0.580 inches maximum
- Body Style
- open type
- Center To Center Distance Between Fuse Contacts
- 2.433 inches minimum and 2.443 inches maximum
- Center To Center Distance Between Outside Mounting Holes Along Length
- 0.995 inches minimum and 1.005 inches maximum
- Current Carrying Rating In Amps
- 500.0
- Fuse Accommodation Quantity
- 1
- Fuse Terminal Type Accommodated
- slotted lug
- Internal Circuit Configuration And Pole Quantity
- 1 pole, mainline, fused
- Material Document And Classification
- qq-s-365 fed spec single material response terminal
- Material
- plastic body
- Material
- silver terminal
- Material
- steel contact
- Mounting Hole Diameter
- 0.190 inches nominal
- Mounting Hole Quantity
- 2
- Mounting Hole Style
- in-line along the length
- Overall Height
- 1.922 inches maximum
- Overall Length
- 3.943 inches maximum
- Overall Width
- 0.907 inches minimum and 0.969 inches maximum
- Screw Thread Diameter
- 0.312 inches nominal
- Screw Thread Quantity Per Inch
- 24.0
- Surface Treatment Document And Classification
- qq-p-416 fed spec single treatment response terminal
- Surface Treatment
- cadmium or silver terminal
- Surface Treatment
- cadmium contact
- Terminal Type And Quantity
- 2 threaded stud
- Test Data Document
- "81349-mil-f-5373c specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.)."
- Voltage In Volts
- 41.0
Material and Special Handling
Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.
-
HMICHAZMAT (Hazardous Material)
-
PIndicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.
-
PMICPrecious Metals
-
SItem contains silver.
-
CRITLCriticality Code
-
XThe item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Manufacturers and Part Numbers
