  5. 5905-00-069-3356

5905-00-069-3356

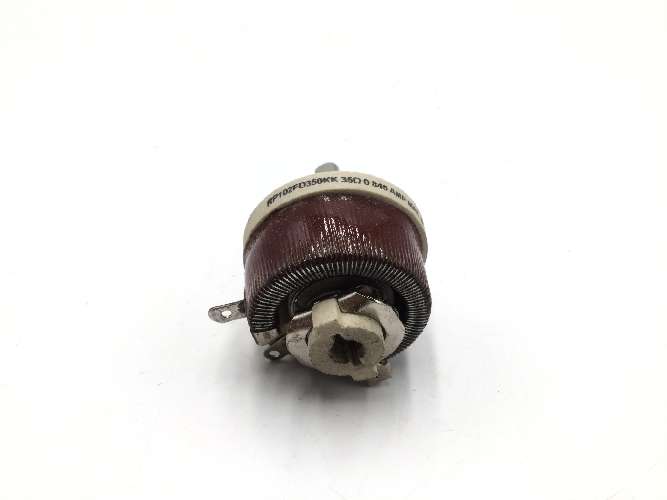

Resistor,variable,wire Wound,non

NSN
5905-00-069-3356
NIIN
00-069-3356
Description
Resistor,variable,wire Wound,non
DEMIL
DEMIL/MLI
INC
37406
Assigment Date
Tue, Jan 1, 1963
Schedule B Code
8533390080
Actuator Travel Control Feature
stops
Actuator Type
single shaft
Ambient Temp In Deg Celsius Per Section At Full Rated Power
25.0 single section
Ambient Temp In Deg Celsius Per Section At Zero Percent Rated Power
340.0 single section
Body Diameter
1.680 inches maximum
Body Length
1.410 inches maximum
Body Style
cylindrical bushing mounted
Contact Arm Electrical Off Position
fully ccw
Electrical Resistance Per Section
35.0 ohms single section
First Flat Length
0.344 inches nominal
Flat Height
0.211 inches minimum and 0.221 inches maximum
Maximum Starting Torque
40.00 inch-ounces
Maximum Stop Torque
240.00 inch-ounces
Mounting Bushing Length
0.328 inches minimum and 0.422 inches maximum
Mounting Method
standard bushing
Nonturn Device Location
at 12 oclock
Nonturn Device Radius
0.485 inches minimum and 0.515 inches maximum
Overall Diameter
2.260 inches maximum
Overall Length
2.332 inches maximum
Power Dissipation Rating Per Section In Watts
25.0 heat sink single section
Reliability Indicator
not established
Resistance Tolerance Per Section In Percent
-10.0 to 10.0 single section
Rotary Actuator Travel In Angular Deg
275.0 minimum and 305.0 maximum
Screw Thread Diameter
0.375 inches nominal
Screw Thread Quantity Per Inch
32.0
Screw Thread Series Designator
unef
Section Quantity
1
Shaft Diameter
0.248 inches minimum and 0.251 inches maximum
Shaft Style
round, flatted
Shaft Length
0.828 inches minimum and 0.922 inches maximum
Specification/Standard Data
81349-mil-r-22/3 government specification
Terminal Location
radially positioned over less than half the circumference
Terminal Type And Quantity
3 tab, solder lug
Test Data Document
"81349-mil-r-22 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.)."

Material and Special Handling

Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.

HMIC
HAZMAT (Hazardous Material)
N
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
PMIC
Precious Metals
U
Precious metal content is unknown
CRITL
Criticality Code
X
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Manufacturers and Part Numbers

Part Number Brand
M22/03-00102FD Military Specifications Promulgated by Military Departments/agencies Under Authority of Defense Standardization Manual 4120 3-M
RP102FD350KK Military Specifications Promulgated by Military Departments/agencies Under Authority of Defense Standardization Manual 4120 3-M

Major Organizational Entities (MOE)

Entity MOE Code MOE Rule PICA DSOR
Department of the Army DA A918 GX
U.s. Coast Guard GP C911 GX
Greece ZU ZU01 ZU
Turkey ZW ZW01 ZW
Israel YD YD01 YD

Packaging and Dimensions

PICA SICA Package Size Package Weight Part Weight Part Dimensions
P 0000 X 0000 X 0000 0000.2 .
PICA SICA Container OPI SPI No. SPI Rev.
P D3 M
PICA SICA SPC Mkg. LVL A LVL B LVL C
P ZZ Q Q
PICA SICA CUSH MOP CATEG. PRESS MAT
P 00 41 69F0 00
PICA SICA WRAP MAT ICQ THK TOS
P FA AAA 0 A
Packaging Code Definitions
LVL_A: Q
Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with applicable specification for shipping container.
LVL_B: Q
Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
OPI: M
All packaging data is mandatory for compliance and no substitutions are permitted. Fast packs should be included in this category.
SPC_MKG: ZZ
Special requirements.
MOP: 41
Watervaporproof bag, sealed.
CUSH_DUN: 00
No requirement.
PRES_MAT: 00
