5342-00-159-4562

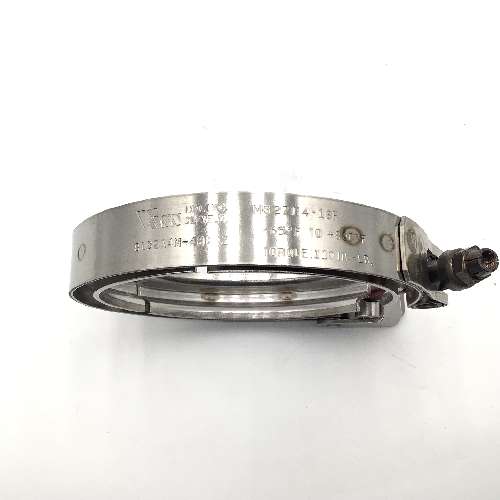

Grooved Clamp Coupling
- NSN
- 5342-00-159-4562
- NIIN
- 00-159-4562
- Description
- Grooved Clamp Coupling
- DEMIL
- DEMIL/MLI
- INC
- 20319
- Assigment Date
- Fri, Jun 4, 1971
- Band Thickness
- 0.062 inches nominal
- Band Width
- 0.880 inches nominal
- Cross-Sectional Shape Style
- grooved retainer
- Height
- 0.271 inches minimum and 0.291 inches maximum
- Included Angle In Deg
- 40.0
- Inside Diameter
- 4.820 inches minimum and 4.910 inches maximum
- Latch Style
- single
- Load Rating
- 15300.0 pounds maximum
- Material Document And Classification
- unable to decode
- Material
- unable to decode
- Nut Type
- self-locking hexagon
- Retainer Thickness
- 0.080 inches nominal
- Retainer Width
- 0.980 inches nominal
- Root Width
- 0.197 inches minimum and 0.217 inches maximum
- Sealing Inner Liner
- not included
- Segment Quantity
- 3
- Shape
- round
- Temp Rating
- -65.0 fahrenheit and 800.0 fahrenheit
Material and Special Handling
Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.
-
HMICHAZMAT (Hazardous Material)
-
PIndicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.
-
PMICPrecious Metals
-
AItem does not contain precious metal.
-
CRITLCriticality Code
-
XThe item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Manufacturers and Part Numbers
| Part Number | Brand |
|---|---|
| 57464-488R | Eaton Aeroquip Llc Dba Jackson North 1 Div Fluid and Electrical Distribution |
| 57464-488R | Eaton Aeroquip Llc Dba Jackson North 1 |
| 57464-488R | Satair A/s |
| 5H14-3-488-1 | Tallyho Equipment Co |
| 8132A4M-488Z | Voss Industries, Llc |
| AS5355/1-18R | Sae International Dba Sae International |
| AS5355/1-18R | National Aerospace Standards Committee Aerospace Industries Association of America Inc Not for Rfq or Solicitation Use |
| AS5355/1-18R | Society of Automotive Engineers Inc |
| MS27114-18R | Military Standards Promulgated by Military Departments Under Authority of Defense Standardization Manual 4120 3-M |
| SAE AS5355 | National Aerospace Standards Committee Aerospace Industries Association of America Inc Not for Rfq or Solicitation Use |
| SAE-AS5355/1 | Sae International Dba Sae International |
Major Organizational Entities (MOE)
| Entity | MOE Code | MOE Rule | PICA | DSOR |
|---|---|---|---|---|
| Department of the Army | DA | A919 | GX | |
| Department of the Navy | DN | N9BG | GX | |
| Department of the Air Force | DF | FXGG | GX | |
| Defense Logistics Agency | DS | DGXC | GX | |
| Republic of Korea | ZH | ZH01 | ZH | |
| Japan | ZJ | ZJ01 | ZJ | |
| Greece | ZU | ZU01 | ZU | |
| Turkey | ZW | ZW01 | ZW | |
| United Arab Emirates | WG | WG01 | WG | |
| Lithuania | WI | WI01 | WI | |
| Spain | YB | YB01 | YB | |
| Israel | YD | YD01 | YD | |
| Malaysia | YW | YW01 | YW | |
| Canada | ZC | ZC01 | ZC |
Packaging and Dimensions
| PICA SICA | Package Size | Package Weight | Part Weight | Part Dimensions |
|---|---|---|---|---|
| P | 0000 X 0000 X 0000 | 0000.9 | . | |
| PICA SICA | Container | OPI | SPI No. | SPI Rev. |
| P | D3 | M | ||
| PICA SICA | SPC Mkg. | LVL A | LVL B | LVL C |
| P | 00 | E | Q | |
| PICA SICA | CUSH | MOP | CATEG. | PRESS MAT |
| P | DA | 33 | 60ZZ | 00 |
| PICA SICA | WRAP MAT | ICQ | THK | TOS |
| P | CA | AAA | A | B |
- LVL_A: E
- Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.
- LVL_B: Q
- Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
- OPI: M
- All packaging data is mandatory for compliance and no substitutions are permitted. Fast packs should be included in this category.
- SPC_MKG: 00
- No special marking.
- MOP: 33
- Greaseproof-waterproof bag, sealed.
- CUSH_DUN: DA
- A-a-1051, paperboard cushioning.
- PRES_MAT: 00
- No requirement.
-
