NSN 5340-01-298-4918

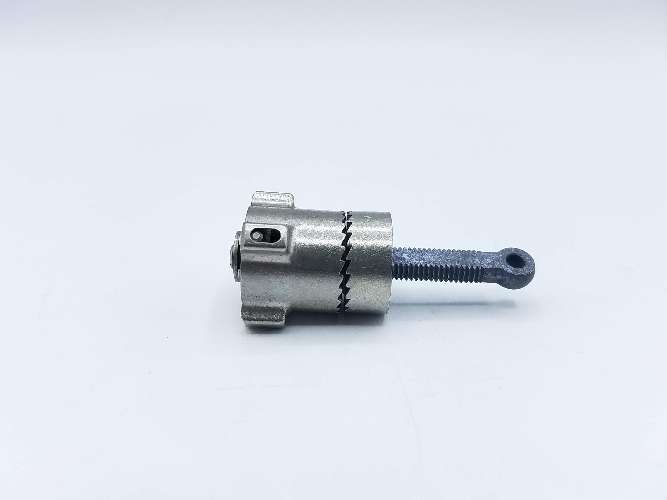

Clamp Bolt Assembly

NSN
5340-01-298-4918
NIIN
01-298-4918
Description
Clamp Bolt Assembly
DEMIL
DEMIL/MLI
INC
20271
Assigment Date
Mon, Apr 17, 1989
Schedule B Code
7318152000
Material
Material
unable to decode
Mounting Method
pin(s)
Nominal Thread Size
0.250 inches
Style Designator
knurled no. 2
Thread Class
3a
Thread Direction
right-hand
Thread Length
1.000 inches nominal
Thread Quantity Per Inch
28
Thread Series Designator
unf

Material and Special Handling

Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.

HMIC
HAZMAT (Hazardous Material)
P
Indicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.
PMIC
Precious Metals
A
Item does not contain precious metal.
CRITL
Criticality Code
X
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Manufacturers and Part Numbers

Part Number Brand
10086889 Nimikkeistokeskus Ncb Finland
490001-5 Monadnock Company, The Dba Lisi Aerospace
5340PL0855920 Jednolity Indeks Materialowy - Uniform Material Index
5340PL1868311 Jednolity Indeks Materialowy - Uniform Material Index
M85731/1-5 Military Specifications Promulgated by Military Departments/agencies Under Authority of Defense Standardization Manual 4120 3-M
MS14108-5 Military Standards Promulgated by Military Departments Under Authority of Defense Standardization Manual 4120 3-M
ST9M454-4-1 The Boeing Company Div Defense

Major Organizational Entities (MOE)

Entity MOE Code MOE Rule PICA DSOR
Department of the Army DA A919 GX
U.s. Marine Corps DM MC47 GX
Department of the Air Force DF FXGI GX
Department of the Navy DN N9BZ GX
U.s. Coast Guard GP C918 GX
France ZF ZF01 ZF
Germany ZG ZG01 ZG
Republic of Korea ZH ZH01 ZH
Japan ZJ ZJ01 ZJ
United Kingdom ZK ZK01 ZK
Italy ZR ZR01 ZR
Denmark ZS ZS01 ZS
Greece ZU ZU01 ZU
Nato Maintenance and Supply Agency ZX ZX01 ZX
Finland WF WF01 WF
United Arab Emirates WG WG01 WG
Poland WP WP01 WP
Slovakia WS WS01 WS
Spain YB YB01 YB
Israel YD YD01 YD
Singapore YJ YJ01 YJ
Ukraine YR YR01 YR
Malaysia YW YW01 YW
Australia ZA ZA01 ZA
Belgium ZB ZB01 ZB
Canada ZC ZC01 ZC
New Zealand ZE ZE01 ZE

Packaging and Dimensions

PICA SICA Package Size Package Weight Part Weight Part Dimensions
P 0000 X 0000 X 0000 0000.1 .
PICA SICA Container OPI SPI No. SPI Rev.
P 10 O
PICA SICA SPC Mkg. LVL A LVL B LVL C
P 00 E Q
PICA SICA CUSH MOP CATEG. PRESS MAT
P 00 10 27A0 00
PICA SICA WRAP MAT ICQ THK TOS
P 00 AAA 0 B
Packaging Code Definitions
LVL_A: E
Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.
LVL_B: Q
Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
OPI: O
Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. However, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. Equal or better protection shall be given the item and there shall be no increase in the package cost.
SPC_MKG: 00
No special marking.
MOP: 10
Physical protection.
CUSH_DUN: 00
No requirement.
PRES_MAT: 00
No requirement.
Export Restrictions
  • Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception.

  • Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts.

  • The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
