5340-01-224-1544

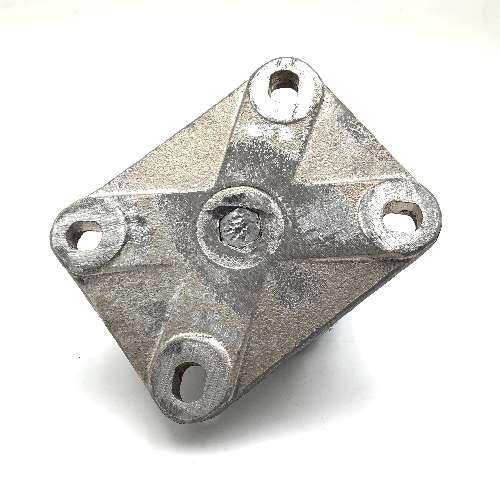

Swivel Caster

NSN
5340-01-224-1544
NIIN
01-224-1544
Description
Swivel Caster
DEMIL
DEMIL/MLI
INC
06188
Assigment Date
Mon, Jan 13, 1986
Schedule B Code
8302200000
Caster Plate Length
4.630 inches nominal
Caster Plate Width
3.630 inches nominal
Center To Center Major Distance Between Mounting Slots Along Length
3.630 inches nominal
Center To Center Major Distance Between Mounting Slots Along Width
2.630 inches nominal
Center To Center Minor Distance Between Mounting Slots Along Length
3.500 inches nominal
Center To Center Minor Distance Between Mounting Slots Along Width
2.500 inches nominal
Effective Height
4.380 inches nominal
King Bolt Bearing Type
roller
Plate Style
square
Safe Operating Load Rating
400.0 pounds maximum
Style Designator
swivel offset
Swivel Bearing Arrangement
one row
Swivel Bearing Type
roller
Tread Width
1.438 inches nominal
Material And Location
unable to decode
Wheel Bearing Type
roller
Wheel Diameter
3.000 inches nominal
Wheel Quantity
1
Wheel Type
built up

Material and Special Handling

Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.

HMIC
HAZMAT (Hazardous Material)
P
Indicates there is no information in the hmirs. The nsn is in a fsc in table ii of fed std 313 and a msds may be required by the user. The requirement for a msds is dependent on a hazard determination of the supplier or the intended end use of item.
PMIC
Precious Metals
A
Item does not contain precious metal.
CRITL
Criticality Code
X
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Manufacturers and Part Numbers

Part Number Brand
S3-0-0-EL3 Aerol Llc

Major Organizational Entities (MOE)

Entity MOE Code MOE Rule PICA DSOR
Department of the Navy DN N9BZ GX
Department of the Air Force DF FXGI GX
United Arab Emirates WG WG01 WG

Packaging and Dimensions

PICA SICA Package Size Package Weight Part Weight Part Dimensions
P 0000 X 0000 X 0000 0004.0 .
PICA SICA Container OPI SPI No. SPI Rev.
P D3 O
PICA SICA SPC Mkg. LVL A LVL B LVL C
P 00 E Q
PICA SICA CUSH MOP CATEG. PRESS MAT
P ZZ 10 27A0 00
PICA SICA WRAP MAT ICQ THK TOS
P 00 AAA C B
Packaging Code Definitions
LVL_A: E
Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.
LVL_B: Q
Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
OPI: O
Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. However, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. Equal or better protection shall be given the item and there shall be no increase in the package cost.
SPC_MKG: 00
No special marking.
MOP: 10
Physical protection.
CUSH_DUN: ZZ
Special requirements. See specific instructions or drawings provided.
PRES_MAT: 00
No requirement.
Export Restrictions
  • Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception.

  • Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts.

  • The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
