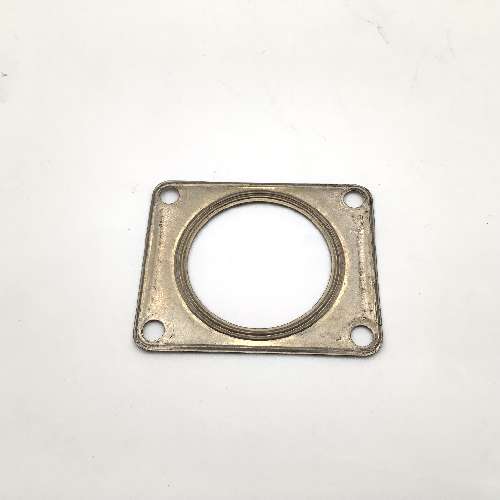

5330-01-395-0691
Description: Gasket
Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
5330-01-395-0691 Properties
-
NSN:5330-01-395-0691
-
Description:Gasket
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Cross Sectional Shape:Rectangular metal
-
Hole Diameter:Between 0.200 inches and 0.220 inches
-
Overall Length:Between 2.260 inches and 2.300 inches
-
Tempurature Rating:800.0 degrees fahrenheit
-
Overall Width:Between 1.860 inches and 1.900 inches
-
Aperture Diameter:Between 1.380 inches and 1.420 inches
-
Outside Corner Radius:Between 0.180 inches and 0.200 inches
-
Center To Center Distance Between Bolt Holes Along Width:1.500 inches
-
Center To Center Distance Between Bolt Holes Along Length:1.900 inches
-
Outside Edge To Bolt Hole Center Distance Along Width:Between 0.180 inches and 0.200 inches
-
Cross-sectional Thickness:Between 0.027 inches and 0.037 inches
-
Bolt Hole Quantity:4
-
Environmental Attribute Code:Asbestos alternative products
-
Special Features:Material non-asbestos
-
Style Designator:Non-circular
Dept. of the Air Force
Dept. of the Navy
Federal Aviation Administration
Austria
Poland
Brazil
Spain
Columbia
Singapore
Malaysia
Canada
Republic of Korea
Portugal
Norway
Greece
NATO Maintenance and Supply Agency
