5325-01-612-5036

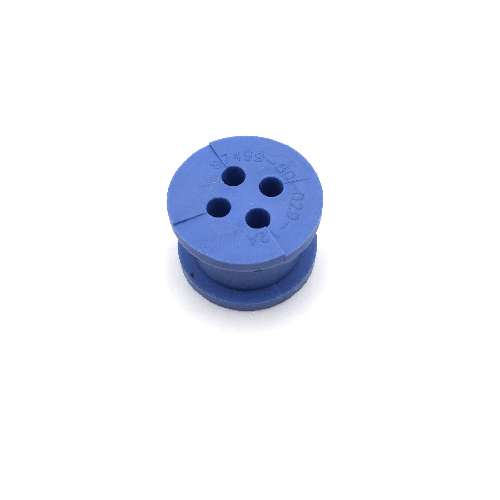

Description: Nonmetallic Grommet

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
5325-01-612-5036 Properties
-
NSN:5325-01-612-5036
-
Description:Nonmetallic Grommet
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:EA
-
Nonmetallic Hardness Rating:45.0 shore durometer a and 65.0 shore durometer a
-
Groove Width:0.515 inches
-
Flange Thickness:Between 0.105 inches and 0.135 inches
-
Overall Height:0.785 inches
-
First Hole Diameter:0.188 inches
-
Second Hole Diameter:0.188 inches
-
Grommet Style:Round
-
Large Flange Outside Diameter:1.187 inches
-
Groove Outside Diameter:0.938 inches
-
Third Hole Diameter:0.188 inches
-
Fourth Hole Diameter:0.188 inches
-
Grommet Construction Type:Solid
-
Part Name Assigned By Controlling Agency:Insert, electrical clamp
-
Special Features:The 4 holes are equally spaced on 0.438 inch diameter and each hole has a split leading to the outside diameter with no gap. The color is listed as medium blue. The applicable wires are rg400 with a diameter of 0.195 inches. This grommet is to be used with a an742d15 clamp. The operating temp is -57 degrees to 200 degrees celcius.
-
Color:Blue
-
Material:Rubber fluorosilicone class fq
