5320-01-047-9497

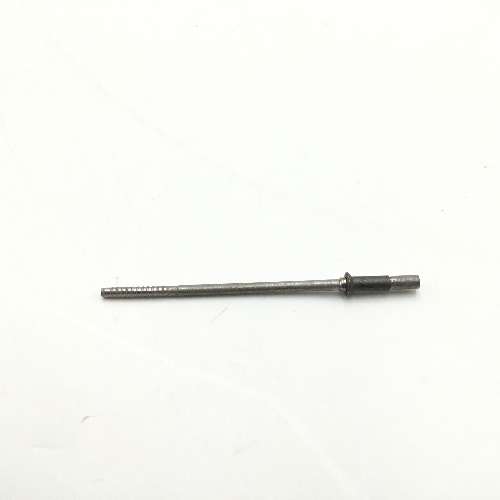

Blind Rivet

NSN
5320-01-047-9497
NIIN
01-047-9497
Description
Blind Rivet
DEMIL
DEMIL/MLI
INC
00864
Assigment Date
Fri, Sep 16, 1977
Schedule B Code
7318230000
Countersink Angle
100.0 degrees nominal
Expansion Device
serrated stem-type w
Fastener Length
0.271 inches minimum and 0.291 inches maximum
Grip Length
0.126 inches minimum and 0.187 inches maximum
Head Major Diameter
0.183 inches maximum
Head Style
flush (flat) countersunk (included angle - less than 135 deg w or w/o chamfer)
Lubrication
dry film
Material Document And Classification
aams 5732 assn std all material responses sleeve
Material Document And Classification
ams 5732 assn std single material response stem
Material Document And Classification
qq-n-281 fed spec all material responses locking ring
Material
iron alloy 660 sleeve
Material
iron alloy 660 stem
Material
nickel alloy r-405 or nickel alloy 400 locking ring
Shank Diameter
0.108 inches minimum and 0.112 inches maximum
Shank Style
self-plugging mechanically locked stem

Material and Special Handling

Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.

HMIC
HAZMAT (Hazardous Material)
N
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
PMIC
Precious Metals
U
Precious metal content is unknown
CRITL
Criticality Code
X
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Manufacturers and Part Numbers

Part Number Brand
110-151-3 National Aerospace Standards Committee Aerospace Industries Association of America Inc Not for Rfq or Solicitation Use
110-151-3 Bell Textron Inc
AF2041-3-3 Allfast Fastening Systems, Llc
CR2662-3-3 Sps Technologies, Llc Dba Cherry Aerospace Div Div Cherry Aerospace
CR2662-3-3 Howmet Global Fastening Systems Inc. Div Voi-Shan Products
CR2662-3-3 Howmet Global Fastening Systems Inc Div Torrance Operations
CR2662FA-03-03 Sps Technologies, Llc Dba Cherry Aerospace Div Div Cherry Aerospace
HS5435-0303 Mcdonnell Douglas Helicopter Co Inc
HS5435-0303 The Boeing Company
NAS1399-XC3 MODIFIED National Aerospace Standards Committee Aerospace Industries Association of America Inc Not for Rfq or Solicitation Use
NAS1399C3-3 National Aerospace Standards Committee Aerospace Industries Association of America Inc Not for Rfq or Solicitation Use
NAS1399C3-3 Leonardo Spa Helicopters Division - Production Site
ST3M79-3-3 Zf Industrieantriebe Witten Gmbh

Major Organizational Entities (MOE)

Entity MOE Code MOE Rule PICA DSOR
Department of the Army DA A919 GX
Department of the Air Force DF FXGI GX
Department of the Navy DN N9BZ GX
France ZF ZF01 ZF
Republic of Korea ZH ZH01 ZH
India ZI ZI01 ZI
Japan ZJ ZJ01 ZJ
United Kingdom ZK ZK01 ZK
Netherlands ZN ZN01 ZN
Portugal ZP ZP01 ZP
Italy ZR ZR01 ZR
Denmark ZS ZS01 ZS
Norway ZT ZT01 ZT
Greece ZU ZU01 ZU
Turkey ZW ZW01 ZW
Jordan VJ VJ01 VJ
United Arab Emirates WG WG01 WG
Poland WP WP01 WP
Spain YB YB01 YB
Israel YD YD01 YD
Singapore YJ YJ01 YJ
Malaysia YW YW01 YW
Belgium ZB ZB01 ZB
Canada ZC ZC01 ZC
New Zealand ZE ZE01 ZE

Packaging and Dimensions

PICA SICA Package Size Package Weight Part Weight Part Dimensions
P 0000 X 0000 X 0000 0000.1 .
PICA SICA Container OPI SPI No. SPI Rev.
P BD O
PICA SICA SPC Mkg. LVL A LVL B LVL C
P 00 E Q
PICA SICA CUSH MOP CATEG. PRESS MAT
P NA 10 27A0 00
PICA SICA WRAP MAT ICQ THK TOS
P 00 AAA C B
Packaging Code Definitions
LVL_A: E
Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.
LVL_B: Q
Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
OPI: O
Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. However, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. Equal or better protection shall be given the item and there shall be no increase in the package cost.
SPC_MKG: 00
No special marking.
MOP: 10
Physical protection.
CUSH_DUN: NA
Ppp-c-795, cellular plastic film cushioning; or a-a-3129, open cell plastic cushioning; or ppp-c-1797, polypropylene foam cushioning; or a-a-59136, polyethylene foam cushioning.
PRES_MAT: 00
No requirement.
