5315-01-376-2109

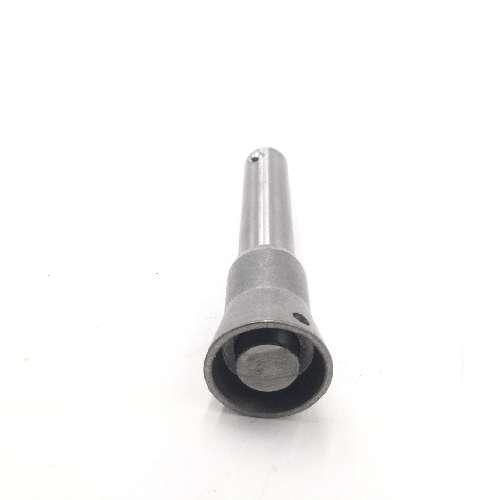

Description: Quick Release Pin

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
5315-01-376-2109 Properties
-
NSN:5315-01-376-2109
-
Description:Quick Release Pin
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Shank Diameter:Between 0.4970 inches and 0.4985 inches
-
Button Handle Diameter:Between 0.872 inches and 0.878 inches
-
Detent Quantity:2
-
Actuation Method:Push button
-
Grip Length:Between 1.800 inches and 1.820 inches
-
Actuation Type:Push
-
Shear Strength:36800 double pounds per square inch
-
Shoulder To Head End Distance:1.150 inches
-
Detent To Tapered End Distance:0.400 inches
-
Special Features:Cup handle
-
Material:Stainless steel
-
Material Specification:Qq-s-763 federal specification single material response handleams5643 assn standard 1st material response head or ams5657 assn standard 2nd material response headqq-s-763 federal specification single material response detentams5643 assn standard 1st material response spindle or ams5657 assn standard 2nd material response spindleqq-s-764 federal specification single material response buttonams5673 assn standard 1st material response spring or qq-w-423 federal specification 2nd material response spring
