5315-01-298-0668

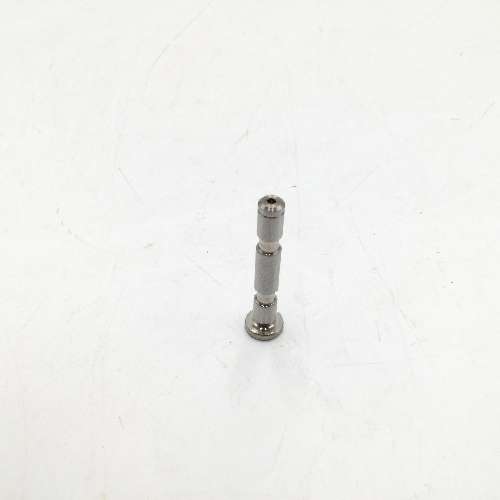

Description: Headed Grooved Pin

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
5315-01-298-0668 Properties
-
NSN:5315-01-298-0668
-
Description:Headed Grooved Pin
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
First End Style:Square
-
Head Style:Flat fillister
-
Diameter:Between 0.1858 inches and 0.1865 inches
-
Effective Length:1.125 inches
-
Undercut Diameter:Between 0.1735 inches and 0.1765 inches
-
Under Head Length:1.265 inches
-
Undercut Width:Between 0.018 inches and 0.020 inches
-
Hardness Rating:36.0 rockwell c and 43.0 rockwell c
-
Pin Head Diameter:0.312 inches
-
Special Features:Three additional grooves; first undercut radius 0.025 in. Nom 0.136 in. Min 0.141 in. Max undercut diameter adjacent to head; second groove 0.118 in. Min 0.148 in. Max w 0.140 in. Min 0.150 in. Max undercut diameter located 0.249 in. Min 0.259 in. Max from bearing surface of head; third groove 0.118 in. Min 0.148 in. Max w 0.140 in. Min 0.150 in. Max undercut diameter located 0.777 in. Min 0.787 in. Max from bearing surface of head
-
Height:0.140 inches
-
Material:Steel comp 630
-
Material Specification:Ams 5643 assn standard single material response
-
Surface Treatment:Passivate
-
Surface Treatment Specification:Ws19168 cagec 5d286 mfr ref single treatment response
-
Style Designator:Groove
