5315-00-061-7321

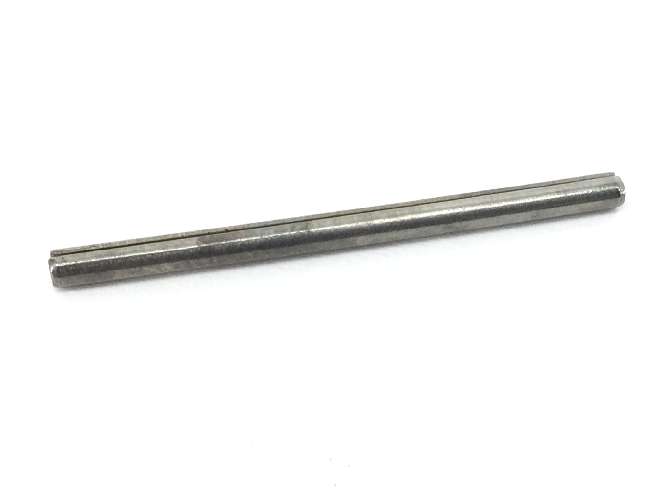

Spring Pin

NSN
5315-00-061-7321
NIIN
00-061-7321
Description
Spring Pin
DEMIL
DEMIL/MLI
INC
02389
Assigment Date
Tue, Jan 1, 1963
Schedule B Code
7320205000
Diameter
0.078 inches nominal
Hardness Rating
83.0 rockwell superficial 15-n minimum and 87.0 rockwell superficial 15-n maximum overall
Material Document And Classification
ams 5506 assn std single material response overall
Material Thickness
0.018 inches nominal
Material
steel comp 410 overall
Overall Length
1.230 inches minimum and 1.270 inches maximum
Style Designator
slotted
Surface Treatment
passivate overall

Material and Special Handling

Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.

HMIC
HAZMAT (Hazardous Material)
N
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
PMIC
Precious Metals
U
Precious metal content is unknown
CRITL
Criticality Code
X
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Manufacturers and Part Numbers

Part Number Brand
42P11699-4200 Navair and Navsea Managed Original Design Activity Dwg Not Material/parts Supplier
5315PL2130477 Jednolity Indeks Materialowy - Uniform Material Index
853290-00 Defense Reduction Agency
990333-35 Lockheed Martin Corporation Div Rms
990333-35 Lockheed Martin Corporation Dba Lockheed Martin Div Lockheed Martin
MS171476 National Aerospace Standards Committee Aerospace Industries Association of America Inc Not for Rfq or Solicitation Use
MS171476 Military Standards Promulgated by Military Departments Under Authority of Defense Standardization Manual 4120 3-M

Major Organizational Entities (MOE)

Entity MOE Code MOE Rule PICA DSOR
Department of the Air Force DF FXGI GX
Department of the Navy DN N9BZ GX
Greece ZU ZU01 ZU
Defense Threat Reduction Agency DH X002 XB
VM VM01 VM
Jordan VJ VJ01 VJ
United Arab Emirates WG WG01 WG
Poland WP WP01 WP

Packaging and Dimensions

PICA SICA Package Size Package Weight Part Weight Part Dimensions
P 0000 X 0000 X 0000 0000.1 .
PICA SICA Container OPI SPI No. SPI Rev.
P ZZ M Y
PICA SICA SPC Mkg. LVL A LVL B LVL C
P 00 E Q
PICA SICA CUSH MOP CATEG. PRESS MAT
P 00 42 27A0 00
PICA SICA WRAP MAT ICQ THK TOS
P 00 000 0
Packaging Code Definitions
LVL_A: E
Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.
LVL_B: Q
Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
OPI: M
All packaging data is mandatory for compliance and no substitutions are permitted. Fast packs should be included in this category.
SPC_MKG: 00
No special marking.
MOP: 42
Container, watervaporproof bag, sealed, container.
CUSH_DUN: 00
No requirement.
PRES_MAT: 00
No requirement.
