5310-01-657-0456

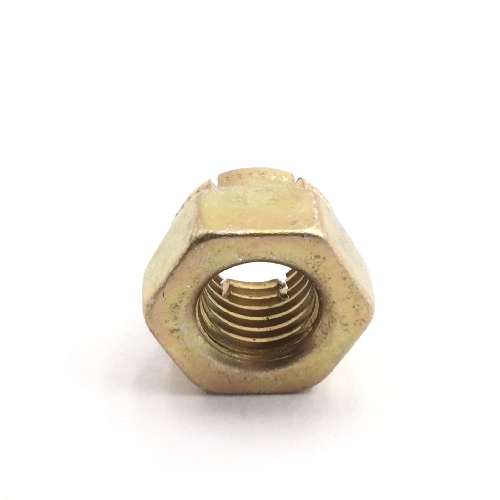

Description: Hexagon Self-locking Nut

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
5310-01-657-0456 Properties
-
NSN:5310-01-657-0456
-
Description:Hexagon Self-locking Nut
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Thread Class:3b
-
Thread Direction:Right-hand
-
Locking Feature:Prevailing torque all metal design
-
Lubrication:Soluble lubricant
-
Nut Style:Hexagon
-
Nut Height:Between 0.271 inches and 0.360 inches
-
Inside Width Across Flats:0.336 inches
-
End Application:2815-01-414-6821
-
Width Across Flats:Between 0.492 inches and 0.502 inches
-
Thread Series:Unjf
-
Thready Qty Per Inch (tpi):24
-
Thread Size:0.3125 inches
-
Bearing Surface Type:Chamfered or washer faced
-
Part Name Assigned By Controlling Agency:Nut, self-locking hexagon regular height
-
Special Features:Segmented beam lock
-
Material:Steel comp 1010 or steel comp 1015 or steel comp 1018 or steel comp 1021 or steel comp 1022 or steel comp 1030 or steel comp 1035 or steel comp 1045 or steel comp 1110 or steel comp 1117 or steel comp 1118 or steel comp 1137 or steel comp 1213 or steel comp 8740
-
Surface Treatment:Cadmium

No Information available for 5310-01-657-0456
