5310-01-388-1532

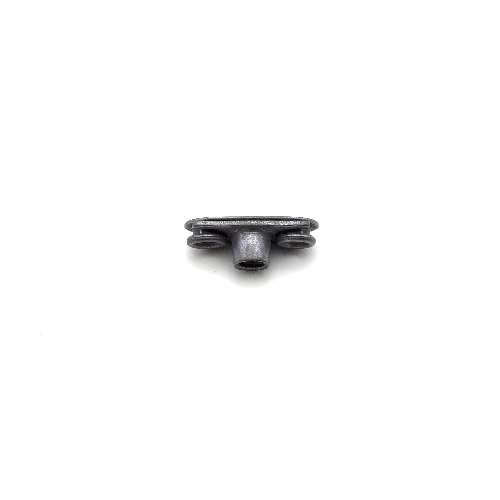

Plate Self-Locking Nut
- NSN
- 5310-01-388-1532
- NIIN
- 01-388-1532
- Description
- Plate Self-Locking Nut
- DEMIL
- DEMIL/MLI
- INC
- 05280
- Assigment Date
- Tue, Mar 22, 1994
- Schedule B Code
- 7318160000
- Center To Center Distance Between Mounting Holes Along Length
- 0.466 inches minimum and 0.470 inches maximum
- Counterbore Diameter
- unable to decode
- Distance From Aperture Center To Mounting Hole Center
- 0.229 inches minimum and 0.239 inches maximum
- Features Provided
- floating nut
- Locking Feature
- prevailing torque all metal design
- Lubrication
- dry film lubricant
- Material Document And Classification
- Plate Width
- 0.290 inches minimum and 0.367 inches maximum
- Plate Thickness
- 0.075 inches minimum and 0.140 inches maximum
- Material
- unable to decode
- Mounting Hole Arrangement Style
- 2 holes
- Mounting Hole Diameter
- 0.100 inches nominal
- Nominal Thread Size
- 0.164 inches
- Nut Height
- 0.250 inches nominal
- Nut Length
- 0.707 inches nominal
- Nut Mounting Provision
- straight holes
- Nut Style
- plate
- Overall Height
- 0.250 inches nominal
- Temp Rating
- 450.0 fahrenheit maximum
- Thread Class
- 3b
- Thread Direction
- right-hand
- Thread Quantity Per Inch
- 32
- Thread Series
- unjc
Material and Special Handling
Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.
-
HMICHAZMAT (Hazardous Material)
-
NIndicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
-
PMICPrecious Metals
-
AItem does not contain precious metal.
-
CRITLCriticality Code
-
XThe item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Manufacturers and Part Numbers
| Part Number | Brand |
|---|---|
| MS21076L08E | National Aerospace Standards Committee Aerospace Industries Association of America Inc Not for Rfq or Solicitation Use |
| MS21076L08E | Military Standards Promulgated by Military Departments Under Authority of Defense Standardization Manual 4120 3-M |
Major Organizational Entities (MOE)
| Entity | MOE Code | MOE Rule | PICA | DSOR |
|---|---|---|---|---|
| National Aeronautics and Space Administration | T1 | G920 | 92 | |
| Department of the Navy | DN | N9BZ | GX | |
| Department of the Army | DA | A919 | GX | |
| Department of the Air Force | DF | FXGI | GX | |
| Germany | ZG | ZG01 | ZG | |
| Japan | ZJ | ZJ01 | ZJ | |
| Italy | ZR | ZR01 | ZR | |
| Spain | YB | YB01 | YB |
Packaging and Dimensions
| PICA SICA | Package Size | Package Weight | Part Weight | Part Dimensions |
|---|---|---|---|---|
| P | 0000 X 0000 X 0000 | 0000.1 | . | |
| PICA SICA | Container | OPI | SPI No. | SPI Rev. |
| P | 10 | O | ||
| PICA SICA | SPC Mkg. | LVL A | LVL B | LVL C |
| P | 00 | E | ||
| PICA SICA | CUSH | MOP | CATEG. | PRESS MAT |
| P | 00 | 10 | 01A0 | 00 |
| PICA SICA | WRAP MAT | ICQ | THK | TOS |
| P | 00 | AAA | 0 | B |
- LVL_A: E
- Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.
- OPI: O
- Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. However, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. Equal or better protection shall be given the item and there shall be no increase in the package cost.
- SPC_MKG: 00
- No special marking.
- MOP: 10
- Physical protection.
- CUSH_DUN: 00
- No requirement.
- PRES_MAT: 00
- No requirement.
-
