5306-01-625-8031

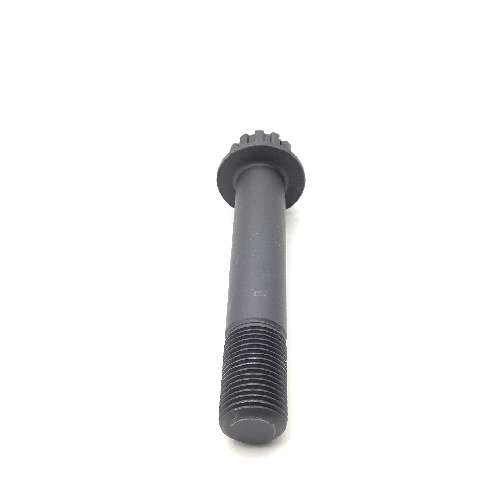

Description: Shear Bolt

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
5306-01-625-8031 Properties
-
NSN:5306-01-625-8031
-
Description:Shear Bolt
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:--
-
Thread Direction:Right-hand
-
Thread Length:1.005 inches
-
Fastener Length:Between 3.5712 inches and 3.6012 inches
-
Head Style:Spline extended washer
-
Head Height:Between 0.552 inches and 0.572 inches
-
Extended Washer Diameter:Between 1.153 inches and 1.163 inches
-
Extended Washer Thickness:Between 0.080 inches and 0.100 inches
-
Grip Diameter:Between 3.515 inches and 3.545 inches
-
Thread Diameter:0.6250 inches
-
Grip Length:Between 2.490 inches and 2.510 inches
-
Hole Quantity:4
-
Hole Type:Drilled
-
Features Provided:Dry film lubricant
-
Thready Qty Per Inch (tpi):18
-
Chamfer Angle:20.0 degrees
-
Part Name Assigned By Controlling Agency:Bolt, tension, nickey alloy 718, 220 ksi ftu, external wren
-
Material:Nickel alloy 718
-
Surface Treatment:Passivate
-
Thread Series Designator:Unjf
