- NSN 5306-01-082-8229
5306-01-082-8229

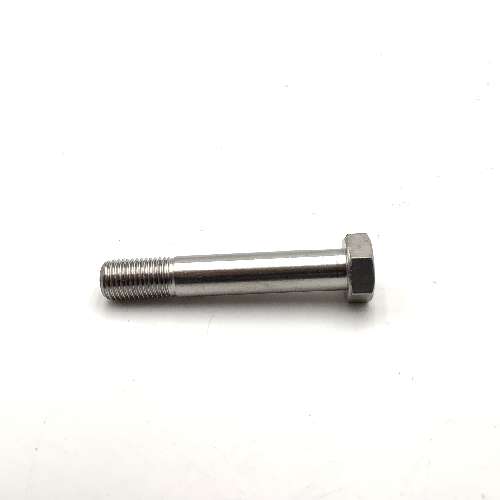

Description: Machine Bolt

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
More MIL-B-7874 Parts
-
5306-00-754-1794 Machine Bolt
MIL-B-7874 Bolt
-
5306-00-637-8723 Machine Bolt
MIL-B-7874 Bolt
-
5306-00-877-5556 Machine Bolt
MIL-B-7874 Bolt
-
5306-01-367-6367 Machine Bolt
MIL-B-7874 Bolt
-
5306-01-375-7124 Machine Bolt
MIL-B-7874 Bolt
-
5306-00-146-2528 Machine Bolt
MIL-B-7874 Bolt
-
5306-00-823-5900 Machine Bolt
MIL-B-7874 Bolt
-
5305-01-118-2454 Shoulder Screw
MIL-B-7874 Screw
MIL-B-7874 Machine Bolt
Spec. Type | Spec. | Color | Gloss | Size |
---|---|---|---|---|
Material document and classification | MIL-B-7874 |
Array Properties
-
NSN:Array
-
Description:Machine Bolt
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Thread Class:3a
-
Thread Direction:Right-hand
-
Thread Length:Between 0.640 inches and 0.719 inches
-
Fastener Length:Between 2.156 inches and 2.203 inches
-
Head Style:Hexagon
-
Head Height:Between 0.203 inches and 0.235 inches
-
Width Between Flats:Between 0.553 inches and 0.565 inches
-
Thread Diameter:0.375 inches
-
Grip Length:Between 1.484 inches and 1.516 inches
-
Features Provided:Finished head
-
Thready Qty Per Inch (tpi):24
-
Min. Tensile Strength (psi):140000 pounds per square inch
-
Hardness Rating:27.0 rockwell c and 37.0 rockwell c
-
Surface Finish:63.0 microinches bearing surface of head
-
Material:Stainless steel
-
Material Specification:Mil-b-7874 military specification single material response
-
Thread Series Designator:Unjf
