5306-00-050-1924

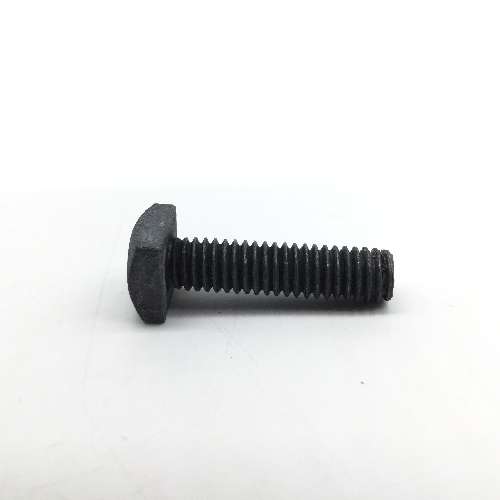

Description: Machine Bolt

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
5306-00-050-1924 Properties
-
NSN:5306-00-050-1924
-
Description:Machine Bolt
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 HD
-
Thread Class:2a
-
Thread Direction:Right-hand
-
Thread Length:0.934 inches
-
Fastener Length:1.250 inches
-
Head Style:Square
-
Head Diameter:0.203 inches
-
Head Height:0.203 inches
-
Width Between Flats:0.500 inches
-
Thread Diameter:0.312 inches
-
Features Provided:Unfinished head
-
Thready Qty Per Inch (tpi):18
-
Material:Steel comp 1013 or steel comp 1015 or steel comp 1016 or steel comp 1017 or steel comp 1018 or steel comp 1019 or steel comp 1020 or steel comp 1022 or steel comp 1025 or steel comp 1030 or steel comp 1033 or steel comp 1035 or steel comp 1038 or steel comp 1040 or steel comp 1108 or steel comp 1109 or steel comp 1110
-
Material Specification:Astm a576 assn standard 1st material response or astm a108 assn standard 2nd material response or qq-s-637 federal specification 3rd material response
-
Surface Treatment:Lead
-
Thread Series Designator:Unc
