5305-00-068-5276

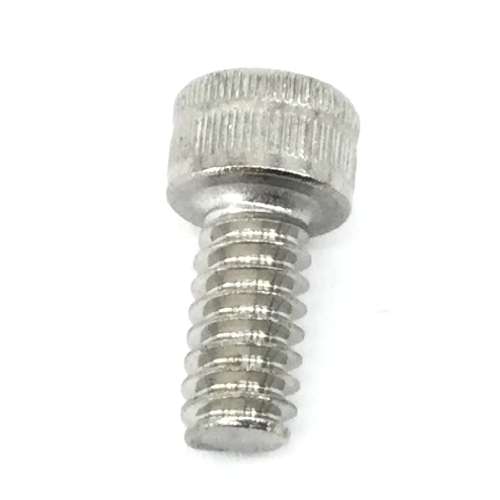

Description: Socket Head Cap Screw

5305-00-068-5276

Price Quote

Qty:
Email Address:
Phone Number:
Company:
Privacy    Terms

Quality Assurance

We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.

  • Certificate of Conformity
  • QC Inspection prior to shipping
  • On time delivery
  • International Shipping Available
  • Friendly service to back every order
MILSPEC: Screws

 Export Restrictions

Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)

5305-00-068-5276 Properties

  • NSN:
    5305-00-068-5276
  • Description:
    Socket Head Cap Screw
  • Shelf Life:
    N/A
  • DEMIL:
    NO
  • UOM:
    1 HD
  • Thread Class:
    3a
  • Thread Direction:
    Right-hand
  • Thread Length:
    Between 0.170 inches and 0.250 inches
  • Fastener Length:
    Between 0.220 inches and 0.250 inches
  • Head Style:
    Flat chamfer
  • Head Diameter:
    Between 0.176 inches and 0.183 inches
  • Head Height:
    Between 0.108 inches and 0.112 inches
  • Internal Drive Style:
    Hexagon
  • End Application:
    W/s: communications terminal, an/ugc-74; communications terminal, satellite an/gsc-3 (v)1; traffic jam, an/tlq-17a; support equipment, b-52 aircraft; aircraft, (ac-130h, mc-130h, ec-130e, hc-130); close in weapon system (ciws-phalanx); missile, advanced medium range air-to-air (amraam) /aim120a; aircraft, airlifter c-17a; trainer, b-1b aircraft; support equipment, b-1 aircraft
  • Thread Diameter:
    0.112 inches
  • Width Across Flats:
    Between 0.094 inches and 0.095 inches
  • Thready Qty Per Inch (tpi):
    40
  • Min. Tensile Strength (psi):
    80000 pounds per square inch
  • Hardness Rating:
    80.0 rockwell b
  • Minimum Yield Strength:
    30000 pounds per square inch
  • Material:
    Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316
  • Material Specification:
    66 federal standard all material responses
  • Surface Treatment:
    Passivate
  • Surface Treatment Specification:
    Qq-p-35 federal specification single treatment response
  • Thread Series Designator:
    Unc
  • Nondefinitive Specification/std Data:
    6 type
