NSN 4920-01-047-5915

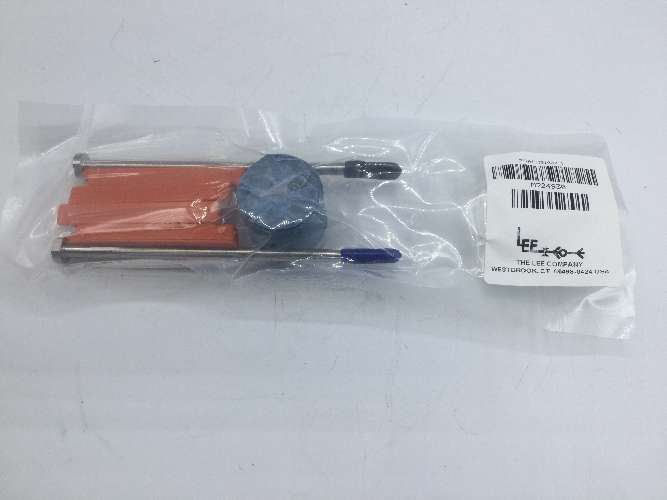

Hydraulic Shut-off Valv Tool Set

NSN
4920-01-047-5915
NIIN
01-047-5915
Description
Hydraulic Shut-off Valv Tool Set
DEMIL
DEMIL/MLI
INC
77777
Assigment Date
Sat, Sep 10, 1977
Schedule B Code
8807300060
End Item Identification
aircraft e-3a,age.
Part Name Assigned By Controlling Agency
extraction set
Special Features
the set include:cuta1015403b (striker), cuta2095503b (plug extraction tool), cuta2064403b (pin extraction tool), cuta3595503b (plug bottoming tap), cuta3095503b (plug starter tap), cuta3564403b (pin bottoming tap), and cuta3064403b (pin starter tap); drawing number:cuta1870103b

Material and Special Handling

Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.

HMIC
HAZMAT (Hazardous Material)
N
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
PMIC
Precious Metals
A
Item does not contain precious metal.
CRITL
Criticality Code
X
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Manufacturers and Part Numbers

Part Number Brand
CUTA1870103B The Lee Co Dba the Lee Co

Major Organizational Entities (MOE)

Entity MOE Code MOE Rule PICA DSOR
Department of the Navy DN N9BG GX
Department of the Air Force DF FGGG GX
Republic of Korea ZH ZH01 ZH
United Kingdom ZK ZK01 ZK
Netherlands ZN ZN01 ZN
Israel YD YD01 YD
Singapore YJ YJ01 YJ

Packaging and Dimensions

PICA SICA Package Size Package Weight Part Weight Part Dimensions
P 0000 X 0000 X 0000 0001.3 .
PICA SICA Container OPI SPI No. SPI Rev.
P D3 M
PICA SICA SPC Mkg. LVL A LVL B LVL C
P 00 E Q
PICA SICA CUSH MOP CATEG. PRESS MAT
P NA 10 60AZ 00
PICA SICA WRAP MAT ICQ THK TOS
P 00 AAA C B
Packaging Code Definitions
LVL_A: E
Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.
LVL_B: Q
Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
OPI: M
All packaging data is mandatory for compliance and no substitutions are permitted. Fast packs should be included in this category.
SPC_MKG: 00
No special marking.
MOP: 10
Physical protection.
CUSH_DUN: NA
Ppp-c-795, cellular plastic film cushioning; or a-a-3129, open cell plastic cushioning; or ppp-c-1797, polypropylene foam cushioning; or a-a-59136, polyethylene foam cushioning.
PRES_MAT: 00
No requirement.
Export Restrictions
  • Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception.

  • Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts.

  • The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
