- NSN 4730-01-181-9638
4730-01-181-9638

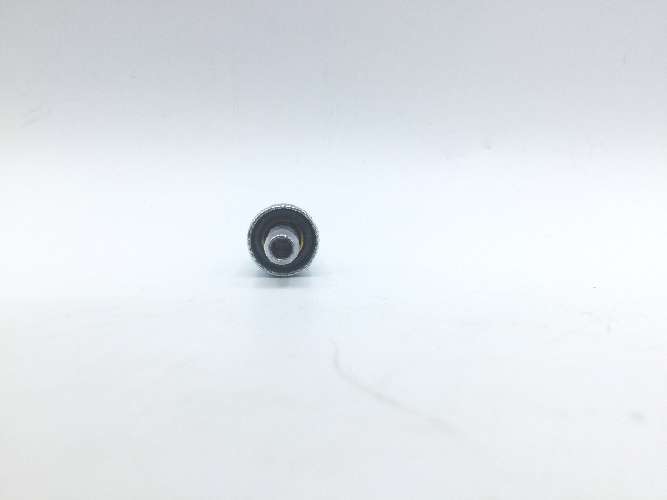

Description: Quick Disconnect Coupling Half

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
4730-01-181-9638 Properties
-
NSN:4730-01-181-9638
-
Description:Quick Disconnect Coupling Half
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Overall Length:Between 2.083 inches and 2.103 inches
-
Quick Disconnect Method:Spring push-lock second quick disconnect end
-
Quick Disconnect Size:0.250 inches second quick disconnect end
-
End Application:Aircraft: c-141, c-5, c-130, f-111, t-39, b-52, f-15, c-135, and the b-2.
-
Connection Style:Barbed or serrated end all ends
-
Leg Length:Between 1.276 inches and 1.286 inches
-
Connection Type:Unthreaded external hose first fluid end connection
-
Criticality Code Justification:Feat
-
Inside Diameter Hose Accommodated:0.188 inches all ends
-
Part Name Assigned By Controlling Agency:Fitting, oxygen hose
-
Special Features:Weapon system essential; life support item; detail specification sheet, mil-dtl-7560/1, titled: valve assembly, oxygen cylinder, bailout
-
Material:Copper alloy body
-
Surface Treatment:Zinc body
-
Surface Treatment Specification:Astm b633, type 3 federal standard single treatment response body
-
Style Designator:Male coupling half
