4730-01-107-4164

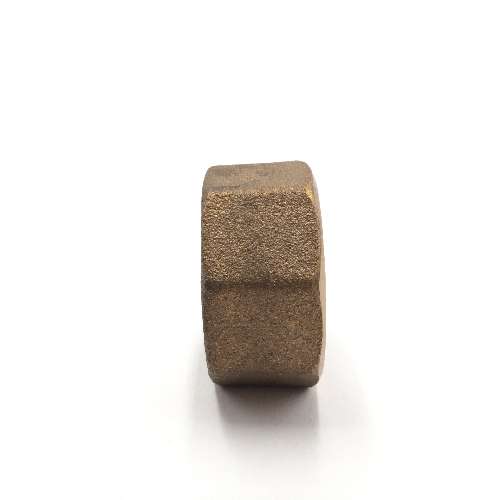

Description: Union Nut

4730-01-107-4164

Price Quote

Qty:
Email Address:
Phone Number:
Company:
Privacy    Terms

Quality Assurance

We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.

  • Certificate of Conformity
  • QC Inspection prior to shipping
  • On time delivery
  • International Shipping Available
  • Friendly service to back every order
MILSPEC: Railing Fittings Lubrication Tube Pipe Hose

 Export Restrictions

Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)

4730-01-107-4164 Properties

  • NSN:
    4730-01-107-4164
  • Description:
    Union Nut
  • Shelf Life:
    N/A
  • DEMIL:
    NO
  • UOM:
    1 EA
  • Thread Class:
    2b
  • Thread Direction:
    Right-hand
  • Shoulder Width:
    0.120 inches
  • Nut Style:
    Hexagon
  • Nut Height:
    0.356 inches
  • Width Across Flats:
    1.344 inches
  • Tempurature Rating:
    Between 150.0 degrees fahrenheit and 425.0 degrees fahrenheit
  • Smallest Inside Diameter:
    0.860 inches
  • Thread Series:
    Uns
  • Shoulder Step Width:
    0.125 inches
  • Shoulder Seat Diameter:
    Between 1.095 inches and 1.140 inches
  • Thready Qty Per Inch (tpi):
    16
  • Thread Size:
    0.398 inches
  • Maximum Working Pressure Rating And Service For Which Designed:
    400.0 pounds per square inch air and 400.0 pounds per square inch oil and 200.0 pounds per square inch steam and 400.0 pounds per square inch water
  • Material:
    Copper alloy 903 or copper alloy 922
  • Material Specification:
    Qq-c-390 federal specification single material response
  • Specification Data:
    81349-mil-f-1183g government specification
  • Nondefinitive Specification/std Data:
    27 figure
Manufacturers and Part Numbers
Part Number
Brand
M1183/10-50N1
Military Specifications
MIL-F-1183H
Military Specifications
C3890.201.130
Anderson Greenwood Lp
803-4384536-1XXX-21
Naval Ship Systems Command
803-4384536
Naval Ship Systems Command
Major Organizational Entities (MOE)
Entity
MOE Code
MOE Rule
PICA
DSOR
User:
DEPARTMENT OF THE AIR FORCE Dept. of the Air Force
MOE_CD:
DF
MOE_RL:
FXGC
PICA:
GX
DSOR:
User:
DEPARTMENT OF THE NAVY Dept. of the Navy
MOE_CD:
DN
MOE_RL:
N9BC
PICA:
GX
DSOR:
User:
POLAND Poland
MOE_CD:
WP
MOE_RL:
WP01
PICA:
WP
DSOR:
User:
SPAIN Spain
MOE_CD:
YB
MOE_RL:
YB01
PICA:
YB
DSOR:
User:
MALAYSIA Malaysia
MOE_CD:
YW
MOE_RL:
YW01
PICA:
YW
DSOR:
User:
AUSTRALIA Australia
MOE_CD:
ZA
MOE_RL:
ZA01
PICA:
ZA
DSOR:
User:
GREECE Greece
MOE_CD:
ZU
MOE_RL:
ZU01
PICA:
ZU
DSOR:
User:
TURKEY Turkey
MOE_CD:
ZW
MOE_RL:
ZW01
PICA:
ZW
DSOR:
Part Identification
INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
19964
FIIG:
A021A0
Concept No.:
1
App. Key:
DB
Cond. Code:
2
Status:
A
Material and Special Handling
Hazardous material, precious metals, criticality, enviroment, and electrostatic discharge indicators
HMIC
PMIC
ESD/EMI
ENAC
MMAC
CRITL
HMIC:
N
PMIC:
A
ESD:
ESD:
MMAC:
---
CRITL:
X
Hazmat (HMIC): N
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
Precious Metals (PMIC): A
Item does not contain precious metal.
Criticality (CRITL): X
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Packaging and Dimensions
Package Size
Package Weight
Part Weight
Part Dimensions (approx.)
Pack Size:
--
Pack Weight:
0.2000lbs
Item Weight:
--
Item Dim:
--
Container
OPI
SPI No.
SPI Rev.
Container:
BV
OPI:
O
SPI No.:
SPI Rev.:
SPC Mkg.
LVL A
LVL B
LVL C
SPC Mkg.:
00
LVL A:
Q
LVL B:
Q
LVL C:
CUSH
MOP
CATEG.
PRESS MAT
CUSH:
XX
MOP:
20
CATEG.:
16ZZ
PRESS MAT:
XX
WRAP MAT
ICQ
THK
TOS
UCL
WRAP MAT:
XX
ICQ:
AAA
THK:
X
TOS:
UCL:
Packaging Code Definitions
LVL A Code (LVL_A):Q
Packing shall be accomplished in accordance with table c.Ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with applicable specification for shipping container.
LVL B Code (LVL_B): Q
Packing shall be accomplished in accordance with table c.Ii for the packing level specified. closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
Procedure Indicator Code (OPI): O
Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. however, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. equal or better protection shall be given the item and there shall be no increase in the package cost.
Special Markings Code (SPC MKG): 00
No special marking.
Method of Preservation (MOP): 20
Preservative coating only (with greaseproof wrap, as required).
Cushion Material (CUSH): XX
Preservation Material (PRESS MAT): XX
