- NSN 4730-01-048-3513
4730-01-048-3513

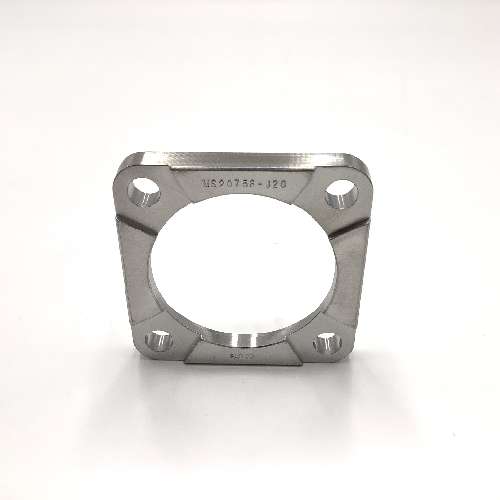

Description: Swivel Retaining Pipe Flange

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
4730-01-048-3513 Properties
-
NSN:4730-01-048-3513
-
Description:Swivel Retaining Pipe Flange
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Bolt Circle Diameter:2.342 inches
-
Recess Diameter:1.854 inches
-
Recess Depth:0.136 inches
-
Thickness:0.234 inches
-
Tube Outside Diameter For Which Designed:1.250 inches
-
Bolt Hole Quantity:4
-
Flange Width:2.188 inches
-
Bolt Hole Diameter:0.266 inches
-
Flange Section Style:Plain recessed face
-
Face Seating Surface Condition:Machined
-
Maximum Operating Pressure And Media For Which Designed:1500.0 pounds per square inch any acceptable
-
Material:Stainless steel
-
Material Specification:Qq-s-764, class 303 se federal specification 1st material response or qq-s-764, class 303 federal specification 1st material response or qq-s-763, class 304l federal specification 2nd material response or qq-s-763, class 304 federal specification 2nd material response or qq-s-766 federal specification 3rd material response
-
Surface Treatment:Passivate
-
Surface Treatment Specification:Qq-p-35 federal specification single treatment response
-
Style Designator:Square, one bolt hole circle
-
Specification Data:81205-bacf22ah manufacturers standard
