- NSN 4730-01-043-6300
4730-01-043-6300

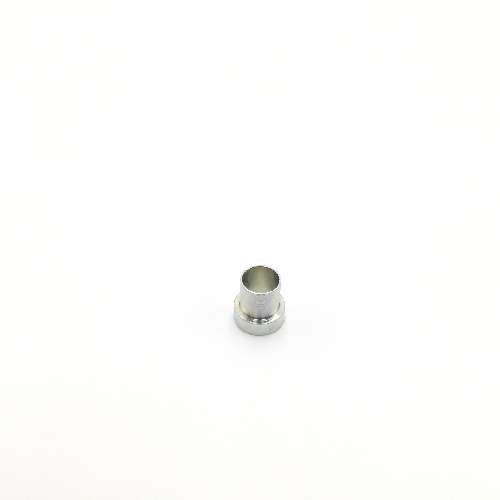

Description: Tube Fitting Flared Sleeve

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
4730-01-043-6300 Properties
-
NSN:4730-01-043-6300
-
Description:Tube Fitting Flared Sleeve
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Casehardening Indicator:Not casehardened
-
Overall Length:0.410 inches
-
Metallic Hardness Rating:70.0 rockwell b
-
Flange Width:0.140 inches
-
Flange Outside Diameter:0.383 inches
-
Seat Angle In Deg:33.0
-
Sleeve Outside Diameter:0.255 inches
-
Hose/tube Outside Diameter For Which Designed:0.250 inches
-
Material:Steel, federal standard 66, comp 1015 or steel, federal standard 66, comp 1020 or steel, federal standard 66, comp 1137 or steel, federal standard 66, comp 1141 or steel, federal standard 66, comp 12l14 or steel, fed standard 66, comp 11l37
-
Material:Steel comp 1015 or steel comp 1020 or steel, federal standard 66, comp 1137 or steel, federal standard 66, comp 1141 or steel, federal standard 66, comp 12l14 or steel, fed standard 66, comp 11l37
-
Surface Treatment:Cadmium
-
Style Designator:Sleeve
-
Surface Treatment:Cadmium, qq-p-416, type 1, class 3
