4730-00-277-7905

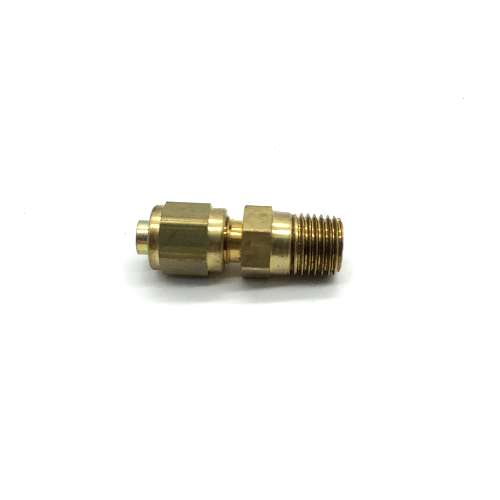

Pipe to Tube Straight Adapter

NSN
4730-00-277-7905
NIIN
00-277-7905
Description
Pipe to Tube Straight Adapter
DEMIL
DEMIL/MLI
INC
03776
Assigment Date
Sun, Jan 1, 1961
Schedule B Code
7412200000
End Item Identification
crane-shovel,truck mounted,20 ton; 2320-01-304-2277 pls (palletized loading system).
Connection Style
flared (tube) first end
Connection Style
plain (pipe) second end
Connection Type
threaded external pipe second end
Connection Type
threaded external tube first end
Furnished Items And Quantity
1 tube coupling nut w/sleeve
Material
copper alloy overall
Nominal Outside Diameter Tube Accommodated
0.250 inches first end
Nominal Overall Length
1.422 inches
Nominal Thread Size
0.250 inches second end
Nominal Pipe Size Accommodated
0.250 inches second end
Nominal Thread Size
0.438 inches first end
Nondefinitive Spec/Std Data
2a figure
Seat Angle
37.0 degrees first end
Specification/Standard Data
81343-j514 professional/industrial association standard
Thread Class
2a first end
Thread Series Designator
nptf second end
Thread Series Designator
unf first end

Material and Special Handling

Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.

HMIC
HAZMAT (Hazardous Material)
N
Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
PMIC
Precious Metals
A
Item does not contain precious metal.
CRITL
Criticality Code
X
The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Manufacturers and Part Numbers

Part Number Brand
10430029 Nimikkeistokeskus Ncb Finland
1JH3476PC11 Westinghouse Electric Corp
2021-4-4B Danfoss Power Solutions Ii, Llc
3041-221PC21 Electric Boat Corporation Div General Dynamics Electric Boat
35283472 Doosan Infracore Portable Power & Attachments
35283472 Ingersoll-Rand European Sales Ltd
3748-4B Fairview Fittings and Mfg Ltd
3764-115REVAPC20 Electric Boat Corporation Div General Dynamics Electric Boat
3764-224REVBPC20 Electric Boat Corporation Div General Dynamics Electric Boat
4-4 070102BA Sae International Dba Sae International
4-4 070102BA Society of Automotive Engineers Inc
4-4-FTX-B Parker Hannifin Corp Dba Pneutronics Div Stratoflex Products Division
4-4FBTXB Parker-Hannifin Corporation Dba Pneutronics Div Tube Fittings Division
4-4FBTXB Parker-Hannifin Corporation Dba Pneutronics Div Corporate Headquarters
4-4FBTXB Parker Hannifin Corp Dba Pneutronics Div Stratoflex Products Division
575-3803-1442828REVBPC20 Naval Ship Systems Command
848FB1-4X1-4 Imperial
9100474 Us Army Aviation and Missile Command
9100474 Quietrole Co
9410901 General Dynamics Land Systems Canadacorp
CV177853 Tvs Supply Chain Solutions Limited
EE41643 Oshkosh Corp
J816-4-4B Bowes Mfg Inc

Major Organizational Entities (MOE)

Entity MOE Code MOE Rule PICA DSOR
National Aeronautics and Space Administration T1 G190 19
Department of the Army DA A920 GX
Department of the Navy DN N9BC GX
U.s. Marine Corps DM MC40 GX
Department of the Air Force DF FXGC GX
U.s. Coast Guard GP C911 GX
Germany ZG ZG01 ZG
Republic of Korea ZH ZH01 ZH
United Kingdom ZK ZK01 ZK
Netherlands ZN ZN01 ZN
Italy ZR ZR01 ZR
Greece ZU ZU01 ZU
Turkey ZW ZW01 ZW
Finland WF WF01 WF
Poland WP WP01 WP
Brazil YA YA01 YA
Israel YD YD01 YD
Singapore YJ YJ01 YJ
Australia ZA ZA01 ZA
Canada ZC ZC01 ZC
New Zealand ZE ZE01 ZE

Packaging and Dimensions

PICA SICA Package Size Package Weight Part Weight Part Dimensions
P 0040 X 0005 X 0005 0000.1 .
PICA SICA Container OPI SPI No. SPI Rev.
P A1 O
PICA SICA SPC Mkg. LVL A LVL B LVL C
P 00 Q Q
PICA SICA CUSH MOP CATEG. PRESS MAT
P 00 10 16Z0 00
PICA SICA WRAP MAT ICQ THK TOS
P 00 AAA 0 B
Packaging Code Definitions
LVL_A: Q
Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with applicable specification for shipping container.
LVL_B: Q
Packing shall be accomplished in accordance with table c.ii for the packing level specified. Closure, sealing and reinforcement shall be in accordance with the appropriate shipping container specification.
OPI: O
Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. However, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. Equal or better protection shall be given the item and there shall be no increase in the package cost.
SPC_MKG: 00
No special marking.
MOP: 10
Physical protection.
CUSH_DUN: 00
No requirement.
PRES_MAT: 00
No requirement.
