4320-01-345-3940

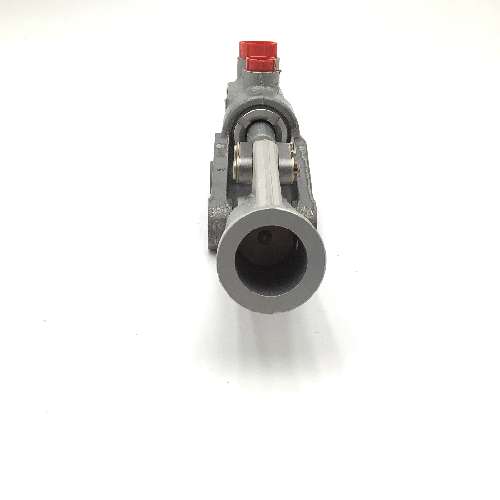

Description: Reciprocating Pump

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
4320-01-345-3940 Properties
-
NSN:4320-01-345-3940
-
Description:Reciprocating Pump
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Mounting Type:Base
-
Cylinder Quantity:1
-
Intake Connection Quantity:1
-
Intake Connection Type:Threaded internal
-
Discharge Connection Quantity:1
-
Discharge Connection Type:Threaded internal
-
Drive Connection Type:Rigid coupled
-
Media For Which Designed:Hydrocarbon fuels and oils
-
Pumping Element Type:Piston
-
Storage Tempurature Range:-60.0 to 200.0 degrees fahrenheit
-
End Application:1055-01-226-6338
-
Discharge Pressure:2250.0 pounds per square inch gage
-
Pumping Element Operating Position:Horizontal
-
Pump Reciprocating Design:Double acting
-
End Item Name:Launcher, mine clear
-
Reciprocating Stroke Type:Variable
-
Operation Method:Manual
-
Drive Shaft Type:Plain round
-
Drive Shaft End Diameter:1.000 inches
-
Unpackaged Unit Length:10.500 inches
-
Unpackaged Unit Width:2.245 inches
-
Unpackaged Unit Height:3.000 inches
-
Pump Basic Material:Aluminum
-
Discharge Connection Thread Size And Series/type Designator:0.438-20 un
-
Intake Connection Thread Size And Series/type Designator:0.750-16 un
-
Special Features:Displacement 0.7cu.In/cycle; media temp range -25.0deg to 200.0deg f; pump handle socket has fastening pin hole 0.020in.Max; travel 60.0deg; 2 mtg holes 0.257in.Dia, 2.750in.Apart located 0.350 to 0.438 from bottom side
