NSN 4130-01-504-0564

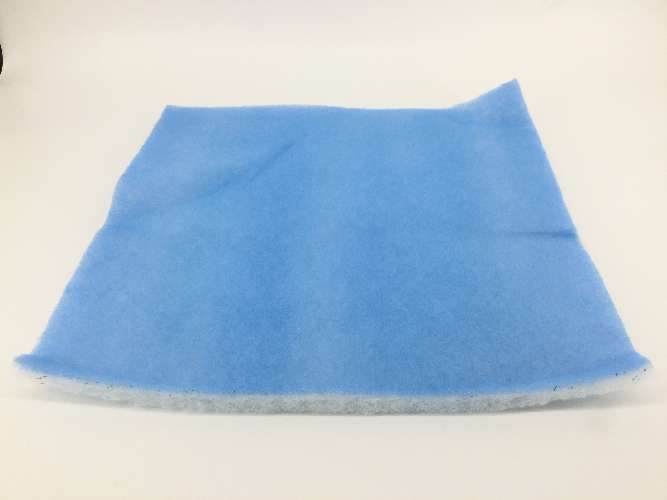

Air Conditioning Filter Element

NSN: 4130-01-504-0564
FSG: 41 - Refrigeration, Air Conditioning, and Air Circulating Equipment
FSC: 4130 -Refrigeration and Air Conditioning Components
NIIN: 01-504-0564
Description: Air Conditioning Filter Element
DEMIL: DEMIL/MLI
INC: 06458
Assigment Date: Thu, Jan 16, 2003
Schedule B Code: 8415909000
Body Overall Length: 20.000 inches nominal
Body Thickness: 0.750 inches minimum and 2.000 inches maximum
Design Type: limited
Part Name Assigned By Controlling Agency: ventilation air filter pad 15af
Maximum Air Flow Rate: 374.0 cubic feet per minute
Overall Width: 20.000 inches nominal
Special Features: "if filter is directional, the downstream side shall be eather colored, tacked or printed with the words "downstream","air leaving side" or other information. inlet side shall not be labeled."
Special Test Features: (ul)900 class 1 for fire: ashrae 52.2-1999: ashrae 52.1-1992.
Style Designator: rectangular (incl square)
Supplementary Features: to be ordered in boxes of 40

Hazardous material, precious metals, criticality, environment, and electrostatic discharge indicators.

HMIC HAZMAT (Hazardous Material): N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.
PMIC Precious Metals: A

Item does not contain precious metal.
CRITL Criticality Code: X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Part Number	Brand
15AF-20X20	Clark Air Conditioning Systems, Inc. Dba Clark Air Conditioning Systems Inc Div Filtration Division
COL 20 20 SL100WBT	National Air Filter Service Co. Of New Jersey
COL 20 20 SL100WT	National Air Filter Service Co. Of New Jersey

Entity	MOE Code	MOE Rule	PICA	DSOR
Department of the Navy	DN	N9BZ	GX

PICA SICA	Package Size	Package Weight	Part Weight	Part Dimensions
P	0000 X 0000 X 0000	0000.1	.
PICA SICA	Container	OPI	SPI No.	SPI Rev.
P	D3	O
PICA SICA	SPC Mkg.	LVL A	LVL B	LVL C
P	00	E	H
PICA SICA	CUSH	MOP	CATEG.	PRESS MAT
P	ZZ	10	18ZZ	00
PICA SICA	WRAP MAT	ICQ	THK	TOS
P	ZZ	AAA	C	B

Packaging Code Definitions

LVL_A: E: Packing shall be accomplished to meet the performance test requirements of astm-d4169, distribution cycle 18, assurance level 1.
LVL_B: H: Packing shall be accomplished using boxes fabricated in accordance with astm-d5118, class weather-resistant.
OPI: O: Options can be exercised as to specific method of preservation or dod approved packaging materials to be used. However, basic preservation method shall be retained, supplemental data shall be complied with, and unit package dimensions shall not be increased by more than one inch. Equal or better protection shall be given the item and there shall be no increase in the package cost.
SPC_MKG: 00: No special marking.
MOP: 10: Physical protection.
CUSH_DUN: ZZ: Special requirements. See specific instructions or drawings provided.
PRES_MAT: 00: No requirement.
