3120-01-527-5973

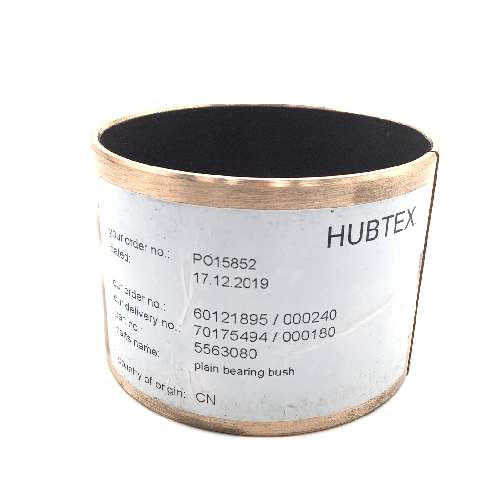

Description: Sleeve Bearing

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
3120-01-527-5973 Properties
-
NSN:3120-01-527-5973
-
Description:Sleeve Bearing
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Overall Length:60.0 millimeters
-
Body Outside Diameter:85.0 millimeters
-
Body Inside Diameter:80.0 millimeters
-
End Application:Steering group
-
Special Features:Matt: permaglide p20 plain bearing material- contains lead, not gor foodstuffs or phrmaceutical products; max pv value: pv 3 n/mm2 x m/s; permissible specific bearing load: static- pmax 250 n/mm2, permissable sliding speed vmax 3 m/s; permissable operating temperature: continuous -40 to +110 c, short periods max +140 c; inside of bearing is the lubrication pocket- deformation of lubrication chamfer and i hole due to round bending is permissable. One end of bearing sleeve seems tapered. The bearing is split and there is also a through hole in the side of the bearing measuring 6mm in width and bearing side thickness is 0.6mm
-
Style Designator:17a-2 split, plain, no outside flanges, interior flang (s) not located at either end
