3120-00-097-6406

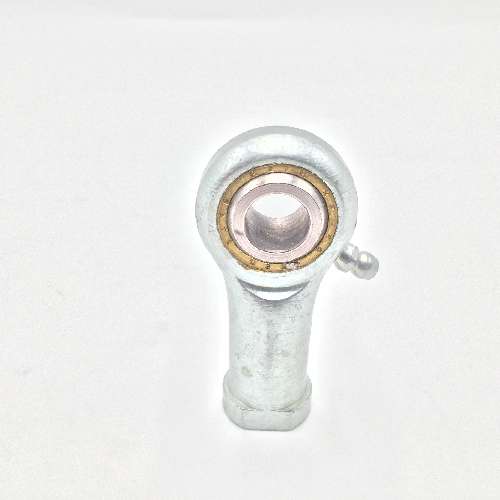

Description: Rod End Plain Bearing

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
3120-00-097-6406 Properties
-
NSN:3120-00-097-6406
-
Description:Rod End Plain Bearing
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Thread Class:3b
-
Thread Direction:Right-hand
-
Shank Style:Internally threaded w/bead and wrench flats and inspection hole
-
Overall Length:2.7810 inches
-
Bore Diameter:Between 0.5000 inches and 0.5015 inches
-
Outer Member Outside Diameter:Between 1.3020 inches and 1.3220 inches
-
Bore Center To Shank End Distance:Between 2.1150 inches and 2.1350 inches
-
Outer Member Width:Between 0.4950 inches and 0.5050 inches
-
Inner Member Width:Between 0.6200 inches and 0.6250 inches
-
Shank Thread Length:1.1870 inches
-
Inspection Hole Center To End Distance:0.5940 inches
-
Shank Width Across Wrench Flats:0.7500 inches
-
Static Radial Load Rating:7436 pounds
-
Thread Diameter:0.500 inches
-
Features Provided:External lubrication fitting
-
Thready Qty Per Inch (tpi):20
-
Hardness Rating:60.0 rockwell c inner member
-
Special Features:Max ball diametrical clearance 0.0010 in. Axial clearance approx 0.0030 in.
-
Material:Steel rod end body
-
Material Specification:66 federal standard single material response inner member
-
Surface Treatment:Cadmium rod end body
-
Style Designator:Ball type
-
Thread Series Designator:Unf
