- NSN 3020-01-382-8782
3020-01-382-8782

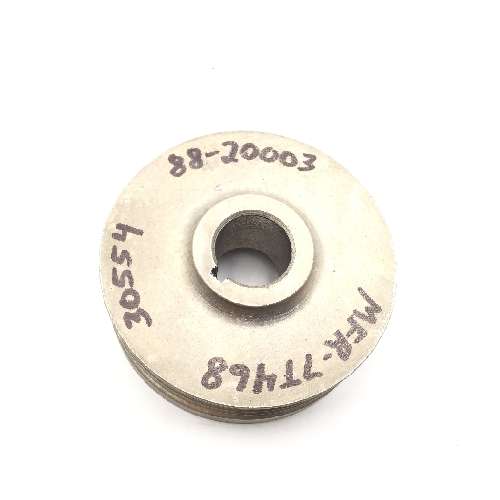

Description: Groove Pulley

Price Quote
Quality Assurance
We are commited to quality and satisfaction as a certified supplier in the aerospace and military industries.
- Certificate of Conformity
- QC Inspection prior to shipping
- On time delivery
- International Shipping Available
- Friendly service to back every order
Export Restrictions
Any part(s) quoted or sold by MilSpec.parts and re-sold (to a third party) CANNOT be sold to a USA embargoed country, company, entity, or person(s). Depending on the ECCN, these commodities may require export license or exception. Diversion contrary to U.S. law is prohibited. Unless otherwise noted, this sale, order or quote may include Munitions List Items (MLI) or Commerce Controlled List Items (CCLI). MLI/CCLI property is controlled by the US Government and in many cases cannot be transferred (exported, sold or given) to a foreign country, a non-US Citizen/National or a non- Permanent US Resident without a valid State/Commerce Department export authorization. It is the responsibility of (the Purchaser) to determine what the applicable requirements may be, to obtain all necessary authorizations, licenses or approvals and are subject to both review and acceptance by MilSpec.parts. The use, disposition, export and re-export of the property covered or included in this sale, order or quote is subject to the provisions of law referenced in End-Use Certificate DLA form 1822, DEC 2001, including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq.); Export Administration Act of 1979 (50 USC App. 2401 et seq.) as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq.); Export Administration Regulations (15 CFR 730 et seq.); Foreign Assets Control Regulations (31 CFR 500 et seq.) and the Espionage Act (18 USC 793 et seq.)
3020-01-382-8782 Properties
-
NSN:3020-01-382-8782
-
Description:Groove Pulley
-
Shelf Life:N/A
-
DEMIL:NO
-
UOM:1 EA
-
Outside Diameter:2.462 inches
-
Overall Length:1.000 inches
-
Keyway Width:0.127 inches
-
Bore Diameter:0.628 inches
-
Bore Length:0.720 inches
-
Distance From Center Of Bore To Bottom Of Keyway:0.386 inches
-
End Application:6115-01-274-7387
-
V Groove Angle In Deg:40.0
-
Material And Location:Steel, aisi 1010 and steel, aisi 1020
-
Face Width:0.829 inches
-
Design Form:Webbed
-
Bore Type:Straight
-
Bearings:Not included
-
Groove Quantity:4
-
Counterbore Feature:Not included
-
Keying Facility:Included
-
Keying Facility Type:Keyway
-
Split Hub Feature:Not included
-
Web/spoke Relationship To Face Centerline:Not offset
-
Lightening Hole:Not included
-
Integral Cooling Vane:Not included
-
Groove Shape:V
-
Standard V-belt Section Designation For Which Designed:4k
-
Bore Feature:Included
-
Shaft Size For Which Designed:0.628 inches
-
Protruding Hub Characteristic:Plain
-
Hub End Outside Diameter And Location:1.000 inches bb end
-
Distance From Outside Flange/rim To Hub End And Location:0.280 inches aa end and 0.171 inches bb end
-
Quantity:1
-
Surface Treatment:Nickel
-
Style Designator:Webbed or spoked
-
Surface Treatment:Nickel plated
